Chuck adaptor Ø 200 mm for MT-base body
Regular price:
€672.55*
€800.33 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-FFL-200
Customs tariff number
8466 2091
European Article Number
4049794073131
Weight
12 kg
Stock:
2
Related links:
Request Item
Product information "Chuck adaptor Ø 200 mm for MT-base body"
Chuck adaptor Ø 200 mm for MT-base body, type FFL
- for mounting of chucks according to DIN 6350
- for base body type MGK / FGK

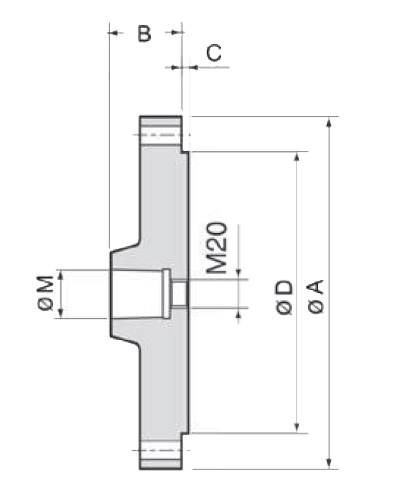

Technical Data
| A mm |
M mm |
F mm |
G mm |
B mm |
C mm |
D mm |
| 100 | 35 | 83 | 6,5 | 52,2 | 2,5 | 70 |
| 160 | 35 | 140 | 11 | 51,5 | 3,5 | 125 |
| 200 | 35 | 176 | 11 | 50,5 | 3,5 | 160 |
| 250 | 35 | 224 | 13 | 50,5 | 4,5 | 200 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
