Box jaws type 3 / A: 345 mm
Product number:
14-KLK-345
Customs tariff number
8466 3000
European Article Number
4049794666920
Weight
304 kg
Stock:
0
Related links:
Request Item
Product information "Box jaws type 3 / A: 345 mm"
Box jaws KLK-345
- set of 4 pieces,
type 3 (with 1 step)
- material: steel
/ Special sizes available upon request
Technical Data

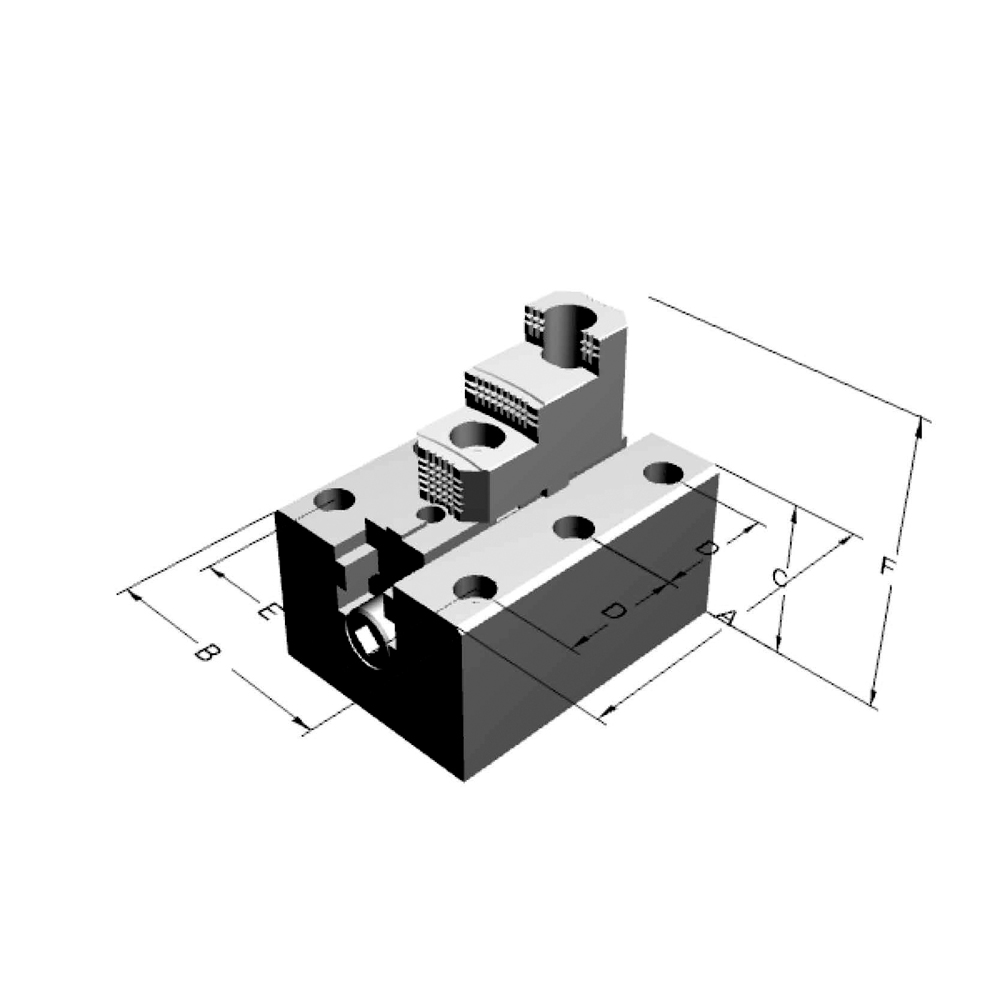

| Typ / Type | A mm | B mm | C mm | D mm | E mm | F mm | H mm |
| 1 | 220 | 160 | 114 | 80 | 120 | 207 | 60 |
| 2 | 280 | 200 | 124 | 110 | 150 | 218,5 | 70 |
| 3* | 345 | 265 | 135 | 142,5 | 190 | 247,5 | 80 |
| 4* | 400 | 320 | 160 | 150 | 240 | 255 | 90 |
| * mit einer Stufe / with 1 step | |||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | |||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
