Rotary table Bison type 5859-160
Product information "Rotary table Bison type 5859-160"

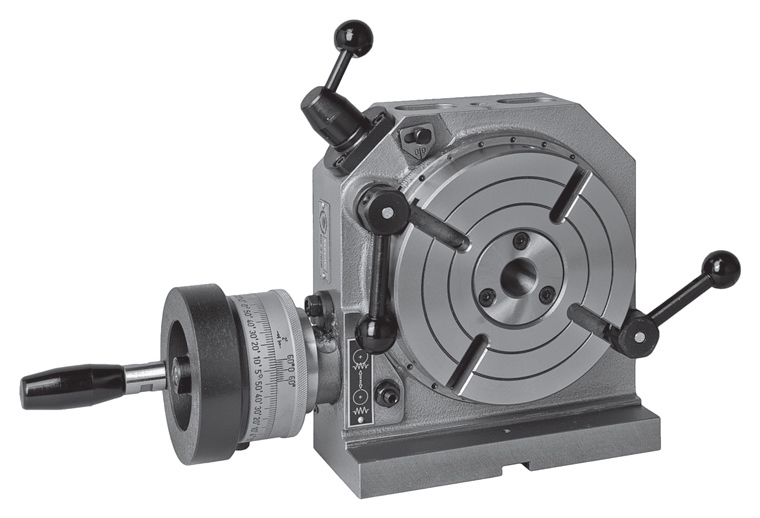

Rotary table Bison 5859-160
- horizontal / vertical rotary table
- due to the three dividing plates, division into the required
number of sections is obtained with an accuracy of 1’
- dividing means of graduated drum with 1’30’’
- centering morse taper sleeves are hardened and ground,
extending machine life
- depending on the size gear ratio is 1:60
- incl. 3 dividing plates with clamping bolts, slot nuts
and table lever
- suitable tailstocks:
Bison type 5818-125
Bison type 5819-95-130

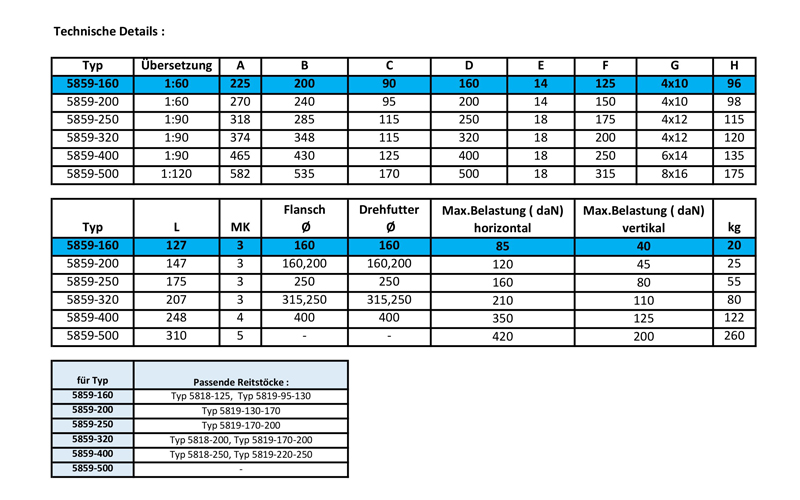

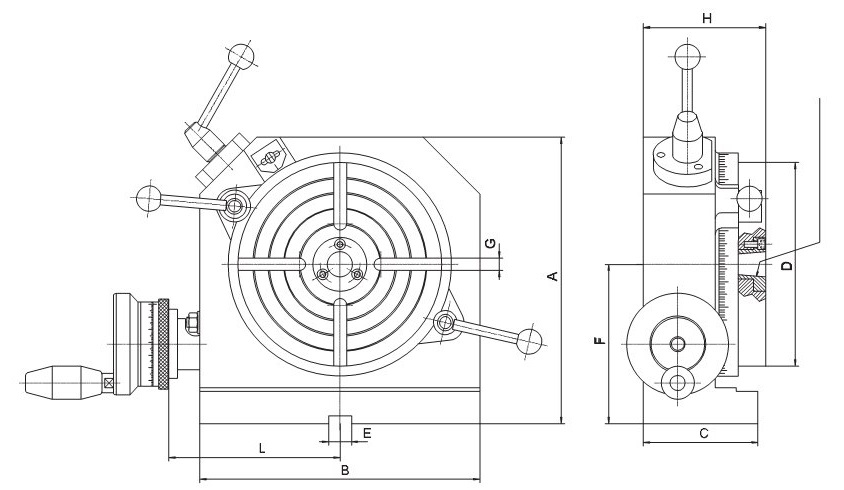

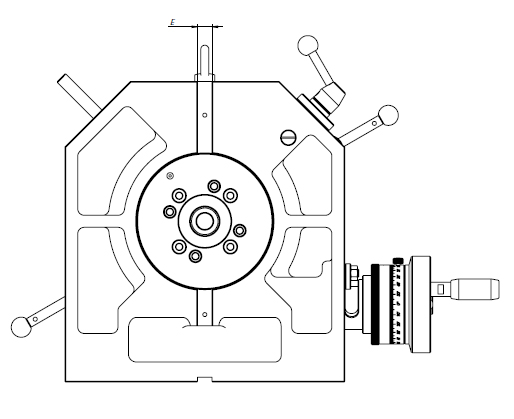

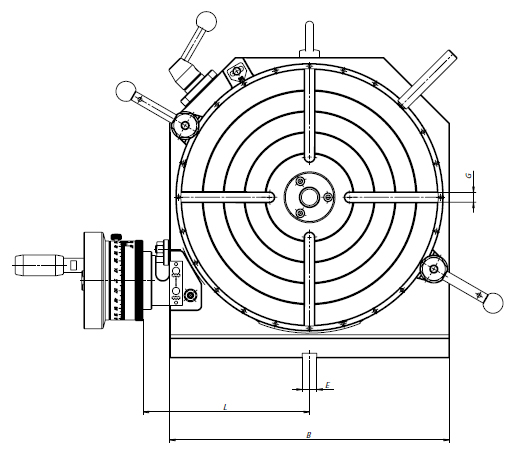

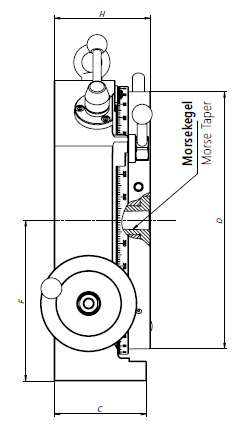

Technical Data
| Typ / Type |
Übersetzung / Worm ratio |
A | B | C | D | E | F | G | H | L |
| 5859-160 | 1:60 | 225,0 | 200 | 90 | 160 | 13 | 125 | 4x10 | 96 | 127,0 |
| 5859-200 | 1:60 | 270,0 | 245 | 95 | 200 | 13 | 150 | 4x10 | 98 | 147,0 |
| 5859-250 | 1:90 | 317,5 | 285 | 115 | 250 | 18 | 175 | 4x12 | 115 | 175,0 |
| 5859-320 | 1:90 | 374,0 | 348 | 115 | 320 | 18 | 200 | 4x12 | 120 | 207,0 |
| 5859-400 | 1:90 | 465,0 | 430 | 125 | 400 | 18 | 250 | 6x14 | 135 | 248,0 |
| 5859-500 | 1:120 | 582,5 | 535 | 170 | 500 | 18 | 315 | 8x16 | 175 | 310,5 |
| MK / MT |
Flansch / Adapters |
Drehfutter / Chucks |
Maximale Belastung (daN) horizontal / Permissible weight of workpieces (daN) horizontal |
Maximale Belastung (daN) vertikal / Permissible weight of workpieces (daN) vertikal |
kg |
| 3 | 160 | 160 | 85 | 40 | 28,0 |
| 3 | 160, 200 | 160, 200 | 120 | 45 | 34,1 |
| 3 | 250 | 250 | 160 | 80 | 57,5 |
| 3 | 315, 250 | 315, 250 | 210 | 110 | 80,0 |
| 4 | 400 | 400 | 350 | 125 | 140,5 |
| 5 | - | - | 420 | 200 | 277,5 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
