Simple indexing spacer, type 310
€3,249.00*
Available, delivery time: 1-3 workdays
Product information "Simple indexing spacer, type 310"
Simple indexing spacer, clamping range 10-315 mm
- for horizontal and vertical applications
- easy of handling
- incl. lathe chuck and masking plates
in 2, 3, 4, 6, 8, 12, 24 sections adjustable

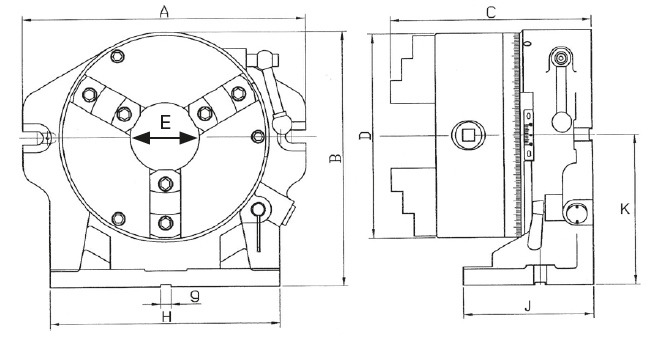

Technical Data
| Typ / Type | Teilung / Division | A mm | B mm | C mm | D mm | H mm | J mm | K mm | Nut (g) / Slot (g) mm | Spannbereich / Clamp. Range | E mm | kg |
| 165 | 2-24 | 253 | 225 | 179 | 160 | 187 | 115 | 130 | 16 | 3-160 | 44 | 30 |
| 200 | 2-24 | 318 | 274 | 209 | 200 | 230 | 157 | 157 | 16 | 4-200 | 58 | 52 |
| 310 | 2-48 | 432 | 388 | 315 | 315 | 350 | 228 | 228 | 16 | 10-315 | 105 | 163 |
| Inkl. Dreibacken-Drehfutter und Rastplatten / Incl. 3-jaw lathe chuck and masking plates | ||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | ||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
