Four-jaw chuck with swivel base, type 200
Regular price:
€484.34*
€576.36 incl. Vat.
Delivery time upon request
Product number:
ZE-1400-200
Customs tariff number
8466 2091
European Article Number
4049794053997
Weight
29 kg
Stock:
0
Related links:
Request Item
Product information "Four-jaw chuck with swivel base, type 200"

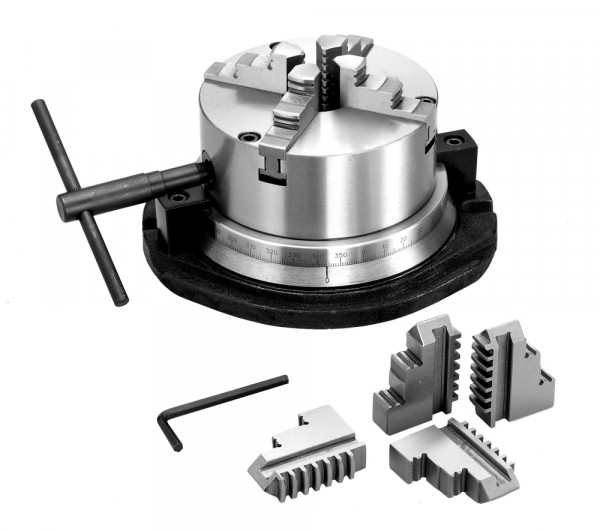

Four-jaw chuck Ø 200 mm with swivel base
- 360° degree scale
- smooth swivel motion and easy handling
- for stationary use
- incl. 1 set each of solid jaws internally / externally stepped, wrench
| Make: | Zentra |
|---|---|
| Type: | 4-jaw lathe chucks |

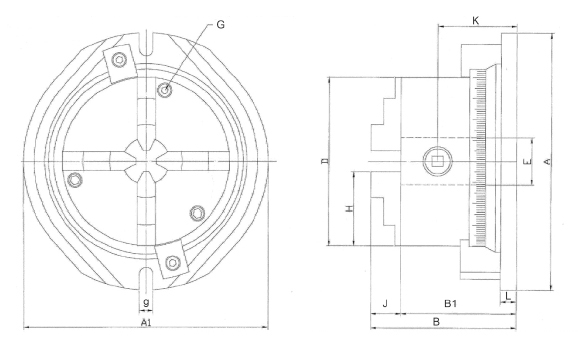

Technical Data
| Typ / Type |
A mm |
A1 mm |
B mm |
B1 mm |
D mm |
E mm |
| 160 | 245 | 233 | 139 | 110 | 160 | 45 |
| 200 | 305 | 270 | 159 | 125 | 200 | 65 |
| L mm |
H mm |
G mm |
K mm |
J mm |
g mm |
kg |
| 15 | 70 | 3-M8 | 69 | 29 | 14 | 18 |
| 20 | 86 | 3-M10 | 75 | 34 | 18 | 31 |
| Inkl. je 1 Satz Dreh- und Bohrbacken, Bedienschlüssel / Incl. 1 set each of solid jaws internally / externally stepped, wrench |
||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
