6-jaw scroll chuck Bison type 3864-160
Product information "6-jaw scroll chuck Bison type 3864-160"

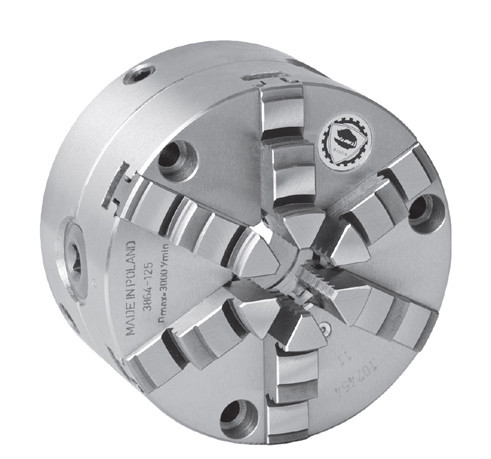

6-jaw scroll chuck Bison
- type 3864 Ø 160 mm
- hardened and ground working surfaces
- balanced scroll plate
- repeatability: 0,015 mm
- fine adjustment radially set screws provide nearly 0 run-out
- the clamped workpiece is adjusted to the required
concenctricity by means of 4
- mounted on the machine tool spindle from the back
of the chuck by using an adapter plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
and 1 wrench
| Jaws: | one-piece jaws |
|---|---|
| Make: | Bison |
| Material: | Steel |
| Type: | 6-jaw lathe chucks |
| Ø : | 160 mm |

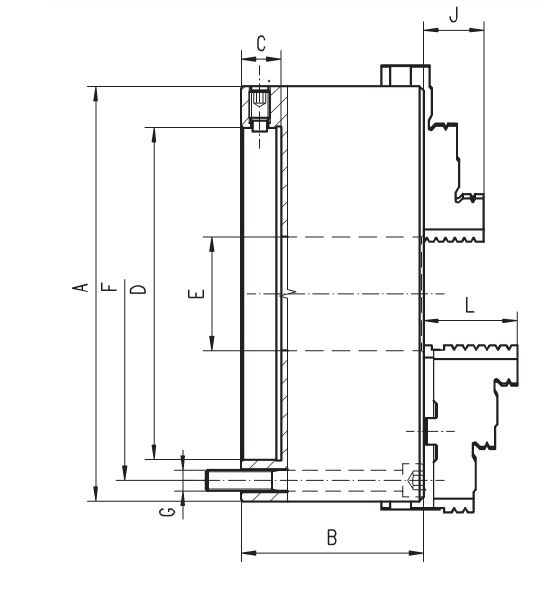

Technical Data
| A | B | C | D | E | F | G | J | L | kg |
| 125 | 71,5 | 15 | 55,000 | 35 | 108,0 | 3xM8 | 20 | 40 | 6,2 |
| 160 | 68,6 | 18 | 86,000 | 42 | 140,0 | 3xM10 | 32 | 43 | 10,5 |
| 200 | 78,0 | 20 | 110,000 | 60 | 176,0 | 3xM10 | 29 | 45 | 17,5 |
| 250 | 89,0 | 20 | 145,000 | 76 | 224,0 | 3xM12 | 34 | 53 | 33,0 |
| 315 | 96,2 | 20 | 180,000 | 103 | 286,0 | 3xM16 | 41 | 56 | 56,0 |
| 400 | 123,0 | 22 | 299,237 | 136 | 171,5 | 6xM16 | 55 | 67 | 99,0 |
| 500 | 144,0 | 30 | 407,160 | 190 | 235,0 | 6xM20 | 60 | 79 | 180,0 |
| 630 | 150,0 | 30 | 407,160 | 252 | 330,2 | 6xM20 | 70 | 87 | 326,0 |
| Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel / Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
