3-jaw combination chuck (Wescott) type 4505-500
Product number:
354505060800
Customs tariff number
84662091
European Article Number
5907412207933
Weight
160 kg
Stock:
0
Related links:
Request Item
Product information "3-jaw combination chuck (Wescott) type 4505-500"
3-jaw combination chuck (Wescott) Bison
- plain back mounting DIN 6351
- type 4505 Ø 500 mm
- individually adjustable jaws
- self-centering jaw clamping
- material of body: cast iron
- solid jaws
- incl. 1 set of solid reversible jaws and 1 wrench
| DIN: | 6351 |
|---|---|
| Jaws: | one-piece jaws |
| Make: | Bison |
| Material: | Cast iron |
| Type: | 3-jaw lathe chucks |
| Ø : | 500 mm |

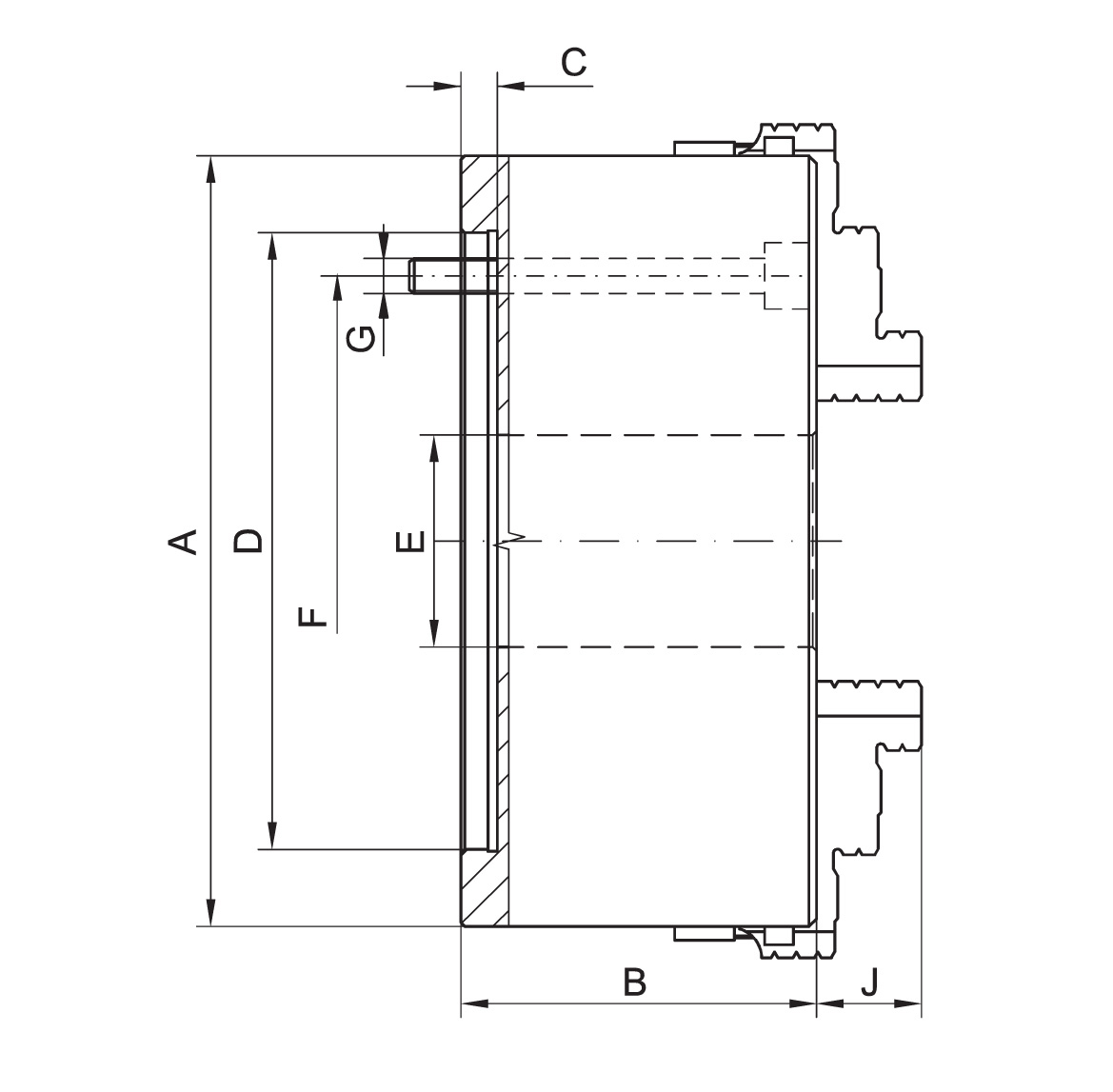

Technical Data
| A | B | C | D | E | F | G | J |
| 200 | 96 | 5 | 160 | 55 | 176 | 6xM10 | 31,0 |
| 250 | 102 | 6 | 200 | 76 | 224 | 6xM12 | 33,0 |
| 315 | 117 | 6 | 260 | 103 | 286 | 6xM16 | 41,5 |
| 400 | 123 | 6 | 330 | 136 | 362 | 6xM16 | 59,0 |
| 500 | 145 | 8 | 420 | 190 | 458 | 6xM16 | 61,0 |
| 630 | 160 | 10 | 545 | 252 | 586 | 6xM16 | 72,0 |
| Inkl. 1 Satz harter Umkehrbacken und 1 Schlüssel / Incl. 1 set of solid reversible jaws and 1 wrench |
|||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
