2-jaw scroll chuck DIN 6350 Bison type 3105-160
Product number:
353105040300
Customs tariff number
84662091
European Article Number
5907412200002
Weight
10 kg
Stock:
0
Related links:
Request Item
Product information "2-jaw scroll chuck DIN 6350 Bison type 3105-160"
2-jaw scroll chuck DIN 6350 Bison
- plain back mounting DIN 6350
- type 3105 Ø 160 mm
- hardened and ground working surfaces
- balanced scroll plate
- material of body: cast iron
- 2-piece jaws
- incl. 1 set of soft top jaws, 1 set of hard master jaws
and 1 wrench
| DIN: | 6350 |
|---|---|
| Jaws: | two-piece jaws |
| Make: | Bison |
| Material: | Cast iron |
| Type: | 2-jaw lathe chucks |
| Ø : | 160 mm |

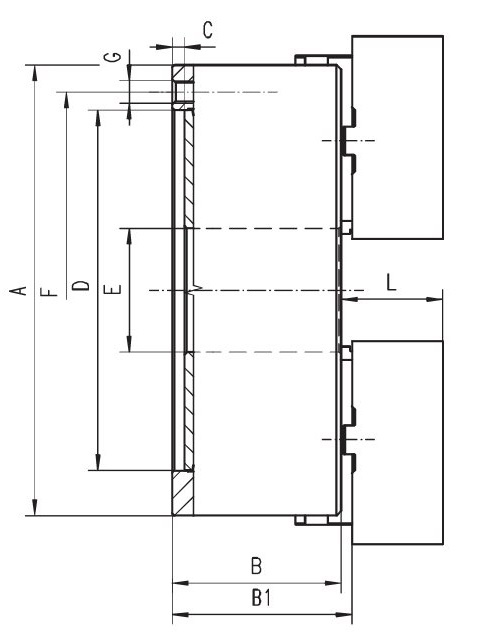

Technical Data
| A | B | B1 | C | D H7 | E | F | G | L | kg |
| 160 | 64,5 | 69,3 | 4 | 125 | 42 | 140 | 6xM10 | 43 | 10 |
| 200 | 75,0 | 79,8 | 4 | 160 | 55 | 176 | 6xM10 | 45 | 17,5 |
| 250 | 85,0 | 88,8 | 5 | 200 | 76 | 224 | 6xM12 | 53 | 29 |
| 315 | 94,0 | 99,1 | 5 | 260 | 103 | 286 | 6xM16 | 57 | 50 |
| Inkl. 1 Satz weicher Aufsatzbacken, 1 Satz harter Grundbacken und 1 Schlüssel / Incl. 1 set of soft top jaws, 1 set of hard master jaws and 1 wrench |
|||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
