Quick-acting machine vice Bison type 6542-100
Product number:
326542050800
Customs tariff number
84662098
European Article Number
5907412216737
Weight
8,9 kg
Stock:
0
Related links:
Request Item
Product information "Quick-acting machine vice Bison type 6542-100"

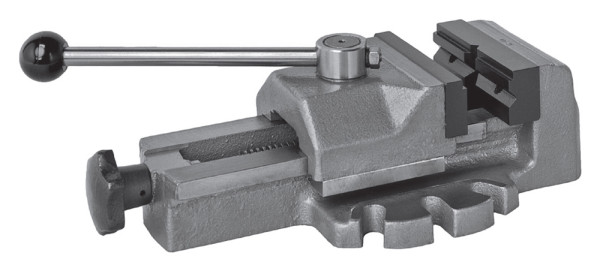

Quick-acting machine vice Bison 6542-100
- designed for milling and drilling operations, especially for
series machining and instant setting of the workpiece
- body and movable jaw are high quality castings
- the clamping of the workpiece is performed by a single
rotary movement of the lever
- the V-block is fastened to the fixed jaw, which enable
the clamping of bars
- V-block enable horizontal or vertical clamping of flat
or round workpieces
- cam mechanism is hardened and ground
- removable jaw inserts are hardened and blackened
| Clamping capacity: | 100 mm |
|---|---|
| Jaw width: | 100 mm |
| Make: | Bison |
| Type: | mechanically, with quick adjustment |
| Type: | Machine vices |

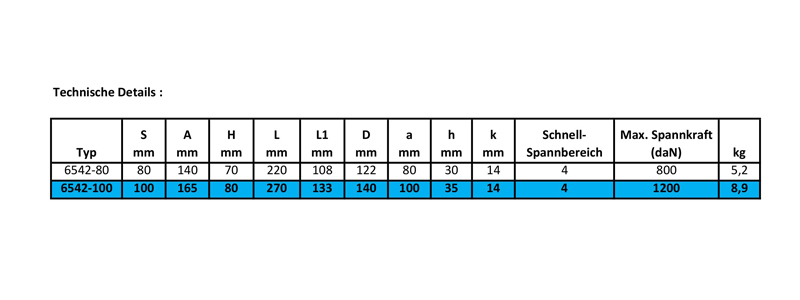

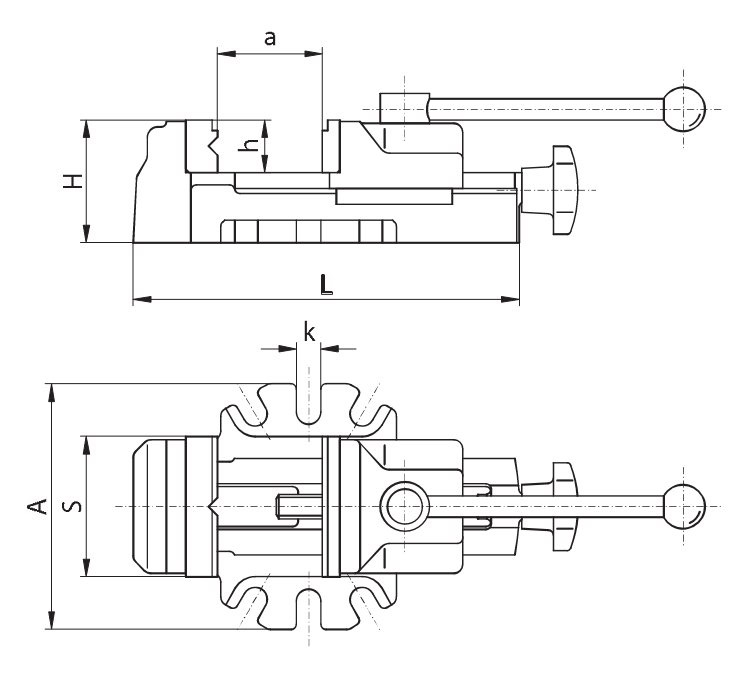

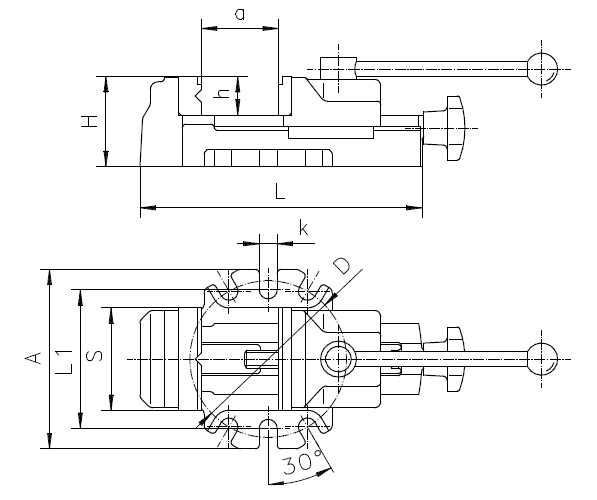

Technical Data
| Typ / Type |
S | A | H | L | L1 | D | a | h | k | Schnell-Spannbereich / Max. quick grip jaw stroke |
Max. Spannkraft (daN) / Max. clamping force (daN) |
kg |
| 6542-80 | 80 | 140 | 70 | 220 | 108 | 122 | 80 | 30 | 14 | 4 | 800 | 5,2 |
| 6542-100 | 100 | 165 | 80 | 270 | 133 | 140 | 100 | 35 | 14 | 4 | 1.200 | 8,9 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||||
