Self-centering machine vice Bison type 6531-125
Product number:
326531060400
Customs tariff number
84662098
European Article Number
5907412216683
Weight
19,2 kg
Stock:
0
Related links:
Request Item
Product information "Self-centering machine vice Bison type 6531-125"

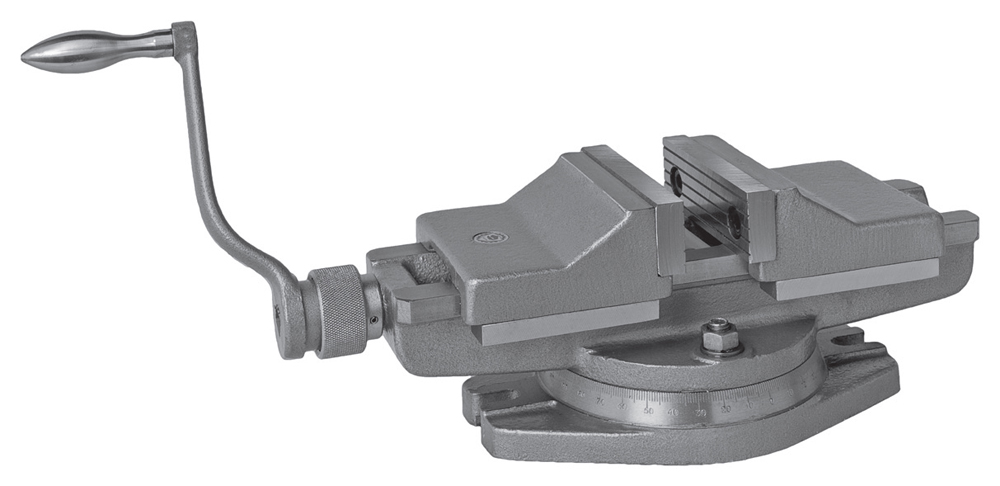

Self-centering vice Bison 6531-125
- designed for various types of milling and planing
of forms, slots and grooves
- 360° swivel base with ground contact edge and graduation
- removable grooved jaw inserts are hardened and ground
- sturdy design of cast iron
- incl. handcrank and slot nuts
| Clamping capacity: | 100 mm |
|---|---|
| Jaw width: | 125 mm |
| Make: | Bison |
| Type: | mechanically |
| Type: | Machine vices |

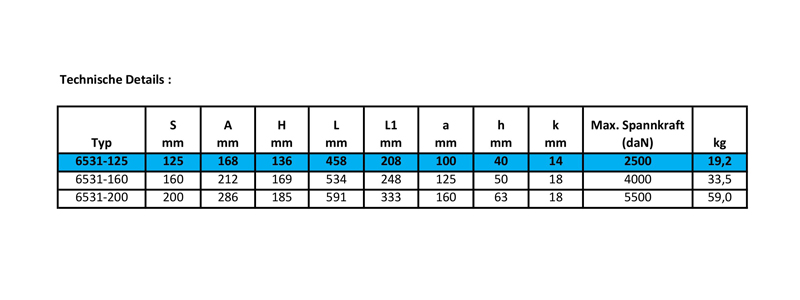

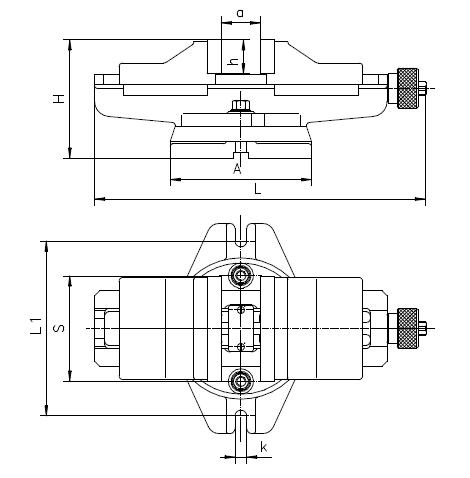

Technical Data
| Typ / Type |
S | A | H | L | L1 | a | h | k | Max. Spannkraft (daN) / Max. clamping force (daN) |
kg |
| 6531-125 | 125 | 168 | 136 | 458 | 208 | 100 | 40 | 14 | 2.500 | 19,2 |
| 6531-160 | 160 | 212 | 169 | 534 | 248 | 125 | 50 | 18 | 4.000 | 33,5 |
| 6531-200 | 200 | 286 | 193 | 591 | 333 | 160 | 63 | 18 | 5.500 | 59,0 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
