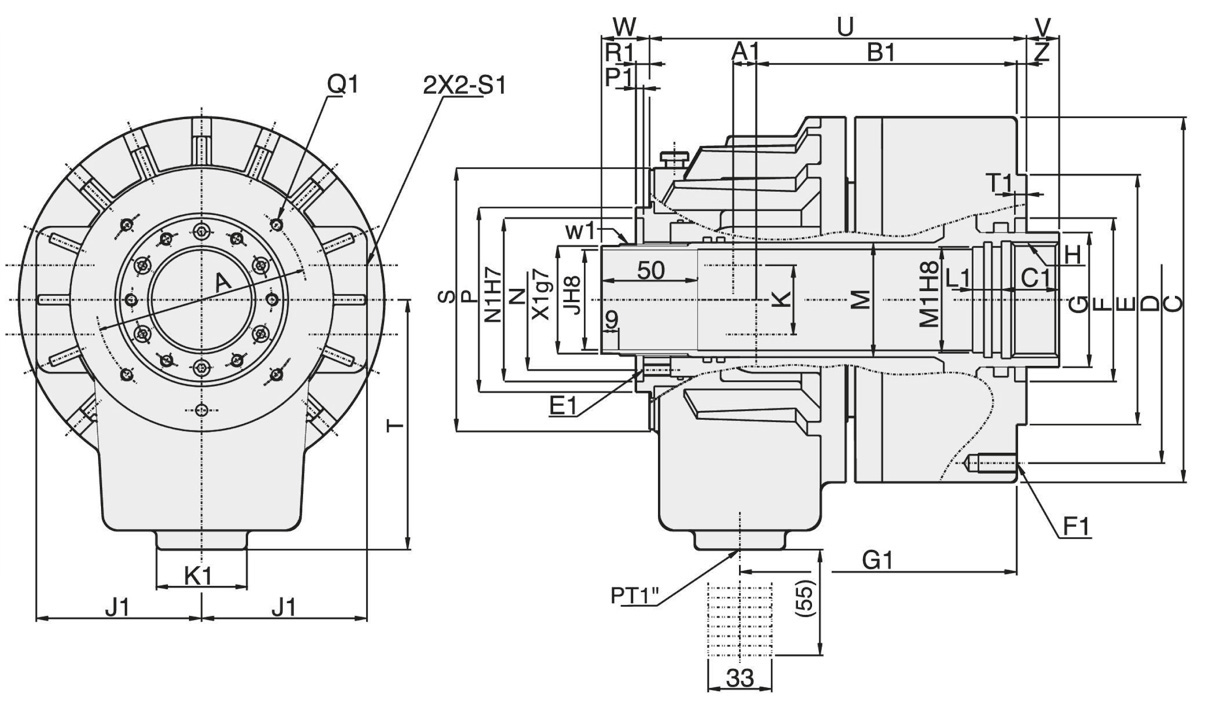

Hydraulic high speed cylinder, type 5M1036
Regular price:
€1,360.82*
€1,619.38 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
T9-M1036
Customs tariff number
8466 2091
European Article Number
4049794025314
Weight
8,6 kg
Stock:
1
Related links:
Request Item
Product information "Hydraulic high speed cylinder, type 5M1036"
Hydraulic high speed cylinder with trough-hole type 5M1036
- for power chucks
- small sized and light-weight design
- large bore
- suitable for high speeds
Technical Data
| Typ / Type |
Kolbendurchmesser / Piston dia mm |
Kolbenfläche Druckseite / Piston area Pressure side cm² |
Kolbenfläche Zugseite / Piston area Pull side cm² |
Kolbenhub / Piston stroke mm |
Max. Zugrohrkraft (öffnen) / Max. draw bar pull-push side kgf |
| 5M1036 | 105 | 67 | 64,5 | 15 | 24,8 (2529) |
| Max. Zugrohrkraft (schließen) / Max. draw bar pull-pull side kgf |
Max. Betriebsdruck / Max.operating pressure kgf cm² |
Max. Drehzahl / Max. Speed |
Trägheitsmoment / Moment of inertia kg / m² |
Gesamtundichtheit / Total leakage L / min |
|
| 24 (2447) | 40 | 8000 | 0,044 | 3,0 |
| Typ / Type |
C1 mm |
E1 mm |
F1 mm |
G1 mm |
H1 mm |
J1 mm |
K1 mm |
L1 mm |
M1 mm |
N1 mm |
| 5M1036 | 25 | M5x9 | M10x20 | 126,5 | 88 | 66 | 53 | 15 | 38 | 64 |
| O1 mm |
P1 mm |
Q1 mm |
R1 mm |
S1 mm |
T1 mm |
U1 mm |
W1 mm |
X1 mm |
B mm |
C mm |
| 14 | 4 | M5x10 | 5 | PT3/8" | 6 | 136 | M44x1,5 | 42 | 101 | 135 |
| Typ / Type |
D mm |
E mm |
F mm |
G mm |
H mm |
J mm |
K mm |
L mm |
N mm |
P mm |
| 5M1036 | 115 | 100 | 65 | 48 | M42x1,5 | 36 | 30 | 62 | 54 | 73 |
| Q mm |
S mm |
T mm |
U max. mm |
V min. mm |
V max. mm |
W min. mm |
W mm |
A1 mm |
B1 mm |
|
| 80 | 104 | 115 | 175,5 | 10 | -5 | 46 | 25 | 11 | 120,5 | |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
