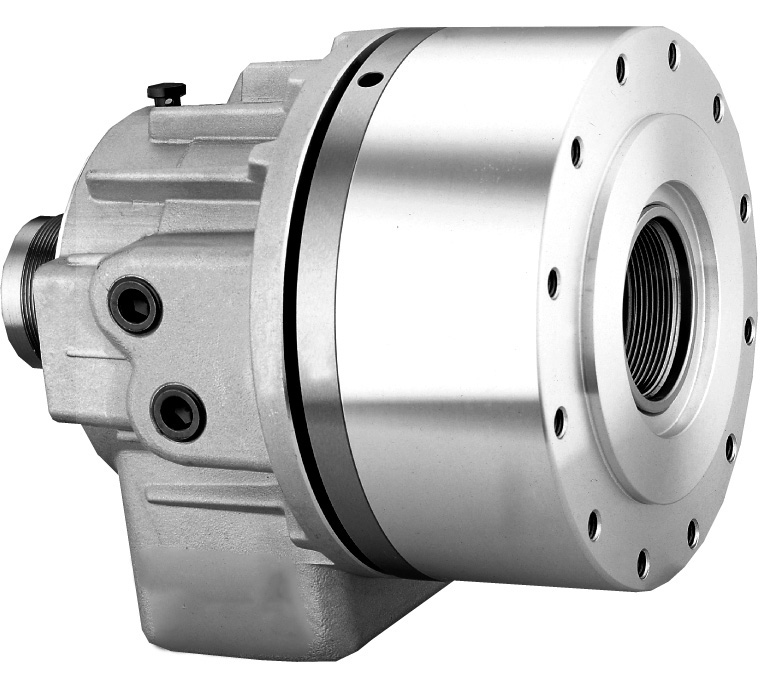

Hydraulic high speed cylinder, type 6M1246

€1,360.82*

€1,619.38 incl. Vat.

Available, delivery time: 1-3 workdays

Product number: T9-M1246

Customs tariff number 8466 2091

European Article Number 4049794025338

Weight 16,5 kg

Stock: 1

Related links:

Request Item

Product information "Hydraulic high speed cylinder, type 6M1246 "

- for power chucks
- small sized and light-weight design
- large bore
- suitable for high speeds

Typ / Type	Kolbendurchmesser / Piston dia mm	Kolbenfläche Druckseite / Piston area Pressure side cm²	Kolbenfläche Zugseite / Piston area Pull side cm²	Kolbenhub / Piston stroke mm	Max. Zugrohrkraft (öffnen) / Max. draw bar pull-push side kgf
6M1246	125	100	89	15	38 (3875)

	Max. Zugrohrkraft (schließen) / Max. draw bar pull-pull side kgf	Max. Betriebsdruck / Max.operating pressure kgf cm²	Max. Drehzahl / Max. Speed	Trägheitsmoment / Moment of inertia kg / m²	Gesamtundichtheit / Total leakage L / min
	33 (3365)	40	7000	0,070	3,0

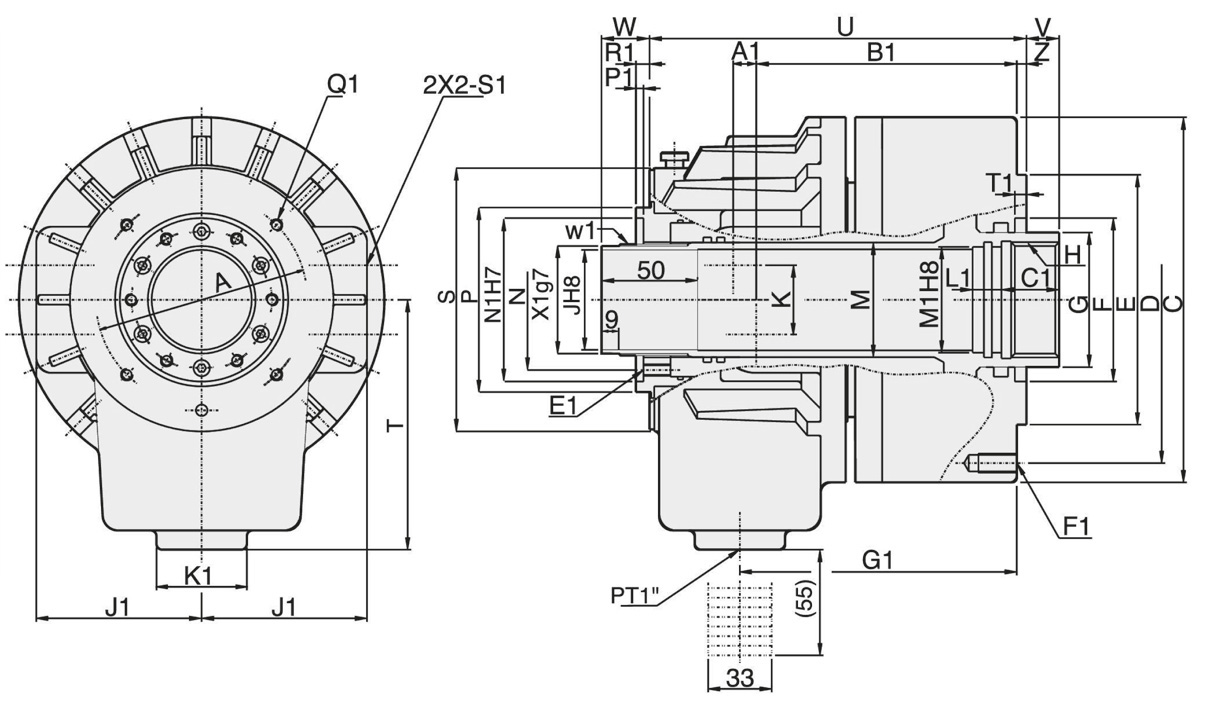

Typ / Type	C1 mm	E1 mm	F1 mm	G1 mm	H1 mm	J1 mm	K1 mm	L1 mm	M1 mm	N1 mm
6M1246	30	M6x9	M10x20	135	98	76	47	15	50	76

O1 mm	P1 mm	Q1 mm	R1 mm	S1 mm	T1 mm	U1 mm	W1 mm	X1 mm	B mm	C mm
14	4	M5x10	6	PT1/2"	6	169	M52x1,5	50	99	155


Typ / Type	D mm	E mm	F mm	G mm	H mm	J mm	K mm	L mm	N mm	P mm
6M1246	130	100	80	65	M55x2	46	36	67	64	85

	Q mm	S mm	T mm	U max. mm	V min. mm	V max. mm	W min. mm	W mm	A1 mm	B1 mm
	90	118	115	184	10	-5	40	25	11,5	126,5


Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.
