Hydraulic high speed cylinder, type 8M1552
Regular price:
€1,427.04*
€1,698.18 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
T9-M1552
Customs tariff number
8466 2091
European Article Number
4049794036631
Weight
17 kg
Stock:
3
Related links:
Request Item
Product information "Hydraulic high speed cylinder, type 8M1552"
Hydraulic high speed cylinder with trough-hole type 8M1552
- for power chucks
- small sized and light-weight design
- large bore
- suitable for high speeds
Technical Data
| Typ / Type |
Kolbendurchmesser / Piston dia mm |
Kolbenfläche Druckseite / Piston area Pressure side cm² |
Kolbenfläche Zugseite / Piston area Pull side cm² |
Kolbenhub / Piston stroke mm |
Max. Zugrohrkraft (öffnen) / Max. draw bar pull-push side kgf |
| 8M1552 | 155 | 161 | 150 | 22 | 60 (6118) |
| Max. Zugrohrkraft (schließen) / Max. draw bar pull-pull side kgf |
Max. Betriebsdruck / Max.operating pressure kgf cm² |
Max. Drehzahl / Max. Speed |
Trägheitsmoment / Moment of inertia kg / m² |
Gesamtundichtheit / Total leakage L / min |
|
| 56 (5710) | 40 | 6200 | 0,21 | 3,9 |

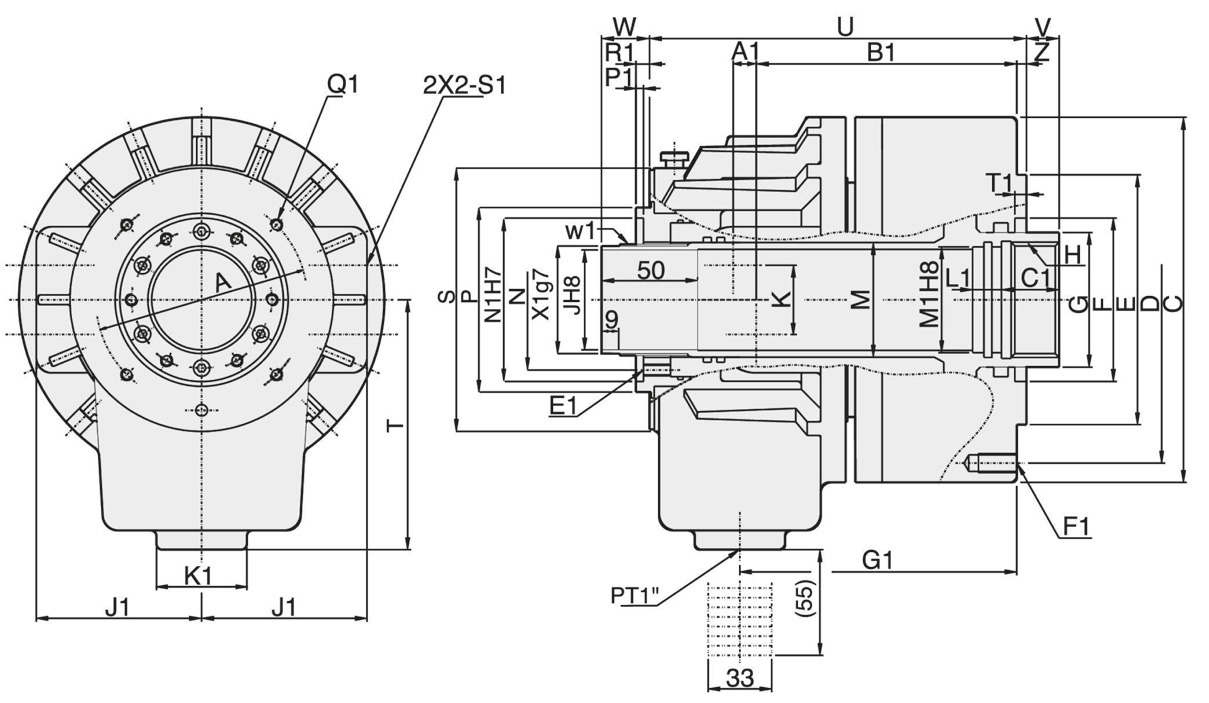

| Typ / Type |
C1 mm |
E1 mm |
F1 mm |
G1 mm |
H1 mm |
J1 mm |
K1 mm |
L1 mm |
M1 mm |
N1 mm |
| 8M1552 | 30 | M6x9 | M10x20 | 145 | 110 | 86 | 47 | 15 | 55 | 85 |
| O1 mm |
P1 mm |
Q1 mm |
R1 mm |
S1 mm |
T1 mm |
U1 mm |
W1 mm |
X1 mm |
B mm |
C mm |
| 14 | 4 | M6x12 | 7 | PT1/2" | 6 | 187,5 | M58x1,5 | 56 | 103 | 190 |
| Typ / Type |
D mm |
E mm |
F mm |
G mm |
H mm |
J mm |
K mm |
L mm |
N mm |
P mm |
| 8M1552 | 170 | 130 | 85 | 70 | M60x2 | 52 | 36 | 75 | 73 | 96 |
| Q mm |
S mm |
T mm |
U max. mm |
V min. mm |
V max. mm |
W min. mm |
W mm |
A1 mm |
B1 mm |
|
| 102 | 137 | 130 | 196 | 17 | -5 | 47 | 25 | 12 | 136 | |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
