Hydraulic high speed cylinder, type 10M1875

€1,815.89*

€2,160.91 incl. Vat.

Available, delivery time: 1-3 workdays

Product number: T9-M1875

Customs tariff number 8466 2091

European Article Number 4049794025376

Weight 26 kg

Stock: 1

Related links:

Request Item

Product information "Hydraulic high speed cylinder, type 10M1875"

- for power chucks
- small sized and light-weight design
- large bore
- suitable for high speeds

Typ / Type	Kolbendurchmesser / Piston dia mm	Kolbenfläche Druckseite / Piston area Pressure side cm²	Kolbenfläche Zugseite / Piston area Pull side cm²	Kolbenhub / Piston stroke mm	Max. Zugrohrkraft (öffnen) / Max. draw bar pull-push side kgf
10M1875	180	198	183	25	74 (7546)

	Max. Zugrohrkraft (schließen) / Max. draw bar pull-pull side kgf	Max. Betriebsdruck / Max.operating pressure kgf cm²	Max. Drehzahl / Max. Speed	Trägheitsmoment / Moment of inertia kg / m²	Gesamtundichtheit / Total leakage L / min
	69 (7036)	40	4700	0,38	4,2

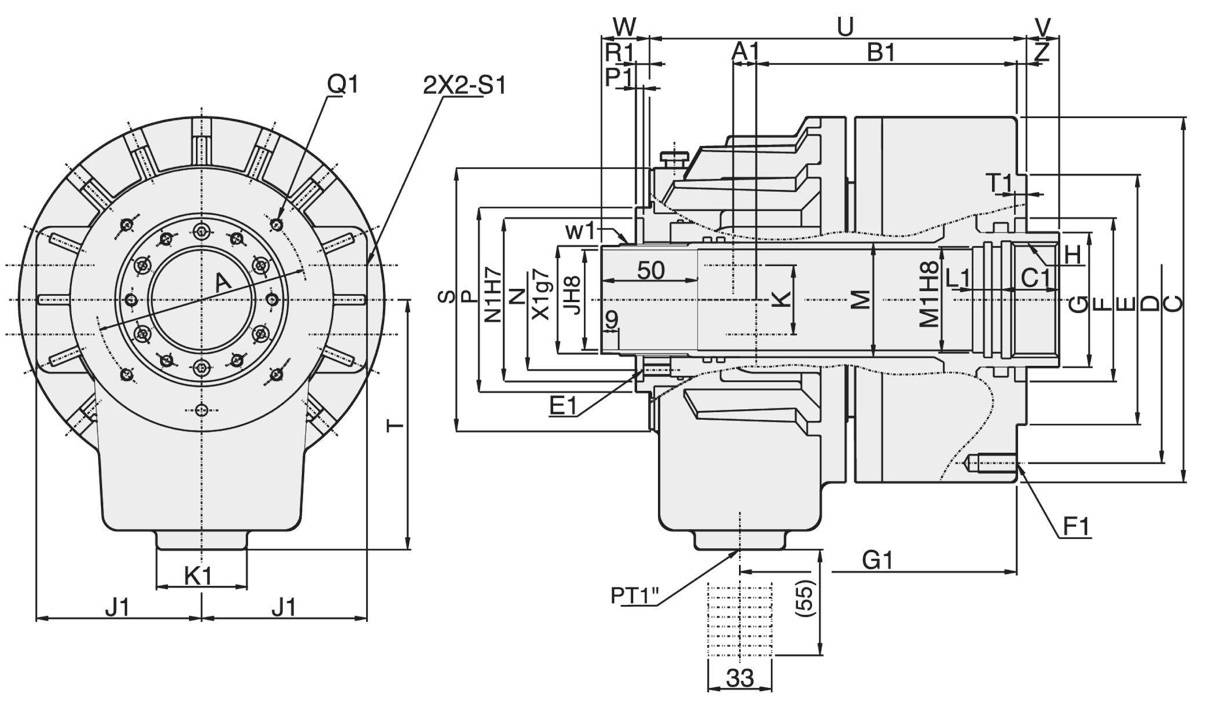

Typ / Type	C1 mm	E1 mm	F1 mm	G1 mm	H1 mm	J1 mm	K1 mm	L1 mm	M1 mm	N1 mm
10M1875	35	M6x9	M10x20	166,5	155	101	47	15	80	108

O1 mm	P1 mm	Q1 mm	R1 mm	S1 mm	T1 mm	U1 mm	W1 mm	X1 mm	B mm	C mm
16	4	M6x12	7	PT1/2"	6	220	M84x2	81	126	215


Typ / Type	D mm	E mm	F mm	G mm	H mm	J mm	K mm	L mm	N mm	P mm
10M1875	190	160	120	95	M85x2	75	36	84	98	121

	Q mm	S mm	T mm	U max. mm	V min. mm	V max. mm	W min. mm	W mm	A1 mm	B1 mm
	131	166	160	230	20	-5	50	25	17,5	153,5


Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.
