Set soft pie jaws for power chucks, type 210
€460.23*
€547.67 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
29-SAB-10
Customs tariff number
8466 2091
European Article Number
4049794060568
Weight
16,95 kg
Stock:
5
Related links:
Request Item
Product information "Set soft pie jaws for power chucks, type 210"
Soft pie jaws for power chucks,
Serration 1,5 x 60°
- for chuck-type 210
- material: steel
- suitable for thin-walled work pieces
- large clamping nearly the entire circumference of the work piece
- can be used as blanks for special jaws
- price per set
| Jaws: | Soft pie jaws |
|---|

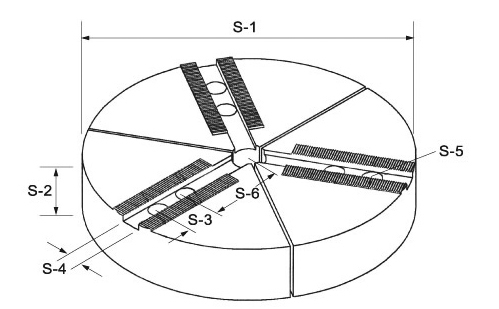

Technical Data
| Für Futter Typ / For chuck type |
S-1 mm |
S-2 mm |
S-3 mm |
S-4 mm |
S-5 mm |
S-6 mm |
Durchgang / Thru hole mm |
Verzahnung / Serration mm |
| 206 | 169 | 40 | 20 | 12 | M10 | 49,5 | 25 | 1,5 x 60° |
| 208 | 200 | 40 | 25 | 14 | M12 | 51 | 25 | 1,5 x 60° |
| 208 | 200 | 50 | 25 | 14 | M12 | 51 | 25 | 1,5 x 60° |
| 210 | 250 | 50 | 30 | 16 | M12 | 65 | 25 | 1,5 x 60° |
| 212 | 300 | 50 | 30 | 21 | M16 | 81 | 25 | 1,5 x 60° |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
