Arbor for reamers DIN 219, MT 4 D:19 mm
€40.18*
€47.81 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-5310-4-19
Customs tariff number
8466 1038
European Article Number
4049794016138
Weight
1,27 kg
Stock:
5
Related links:
Request Item
Product information "Arbor for reamers DIN 219, MT 4 D:19 mm"

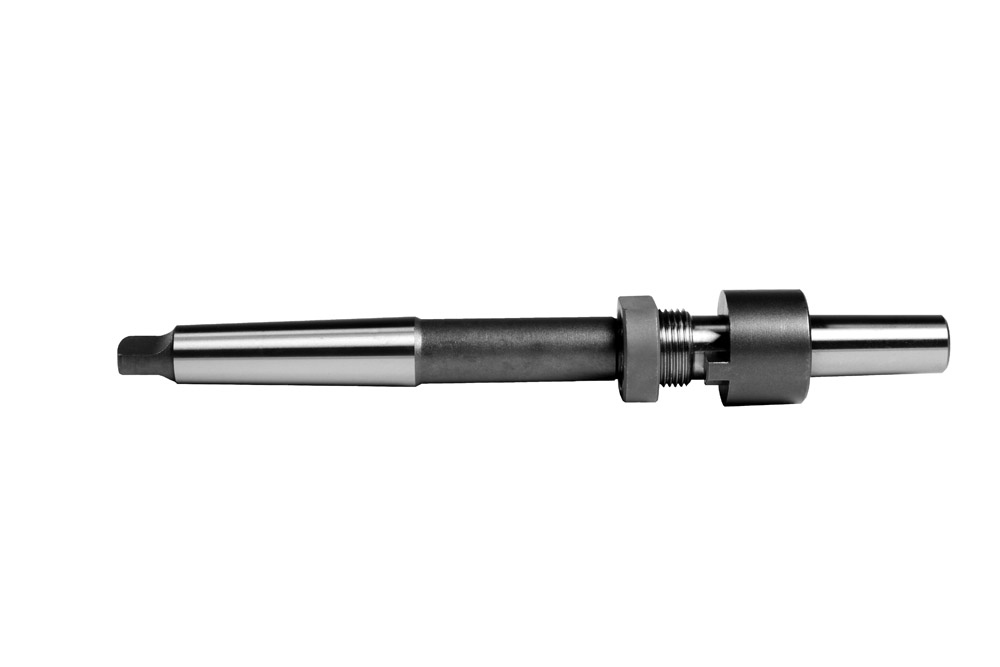

Arbor with morse taper for reamers DIN 219, MT 4
- DIN 219
- type 5310
- MT 4
- D: 19 mm
| Size: | MT 4 |
|---|---|
| Tool holders: | Morse taper tooling |
| Type: | Arbors for reamers |
| Ø : | 19 mm |

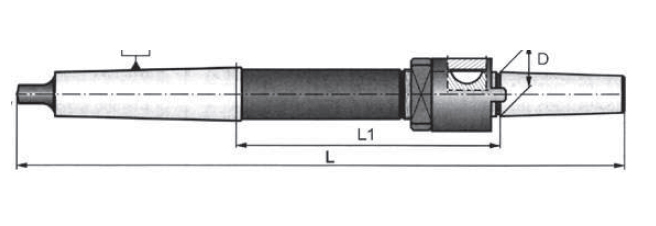

Technical Data
| MK / MT |
D mm |
L mm |
L1 mm |
| 2 | 10 | 220 | 105,8 |
| 3 | 13 | 250 | 111,9 |
| 3 | 16 | 261 | 117,9 |
| 3 | 19 | 270 | 121,1 |
| 3 | 22 | 278 | 122,1 |
| 4 | 19 | 298 | 125,6 |
| 4 | 22 | 312 | 132,6 |
| 4 | 27 | 325 | 137,6 |
| 4 | 32 | 345 | 148,9 |
| 5 | 27 | 359 | 139,6 |
| 5 | 32 | 376 | 147,9 |
| 5 | 40 | 396 | 157,9 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
