Self-centering wedge bar chuck type 3474-500
Product number:
353474260000
Customs tariff number
84662091
European Article Number
5907412208633
Weight
163 kg
Stock:
0
Related links:
Request Item
Product information "Self-centering wedge bar chuck type 3474-500"
Self-centering wedge bar chuck Bison
- 3-jaw chuck type 3474 Ø 500 mm
- serration according to Reishauer System (RHU)
- jaw locking system
- hardened and ground jaw guides
- material of body: steel
- solid jaws
- incl. 1 set of solid reversible jaws and 1 wrench

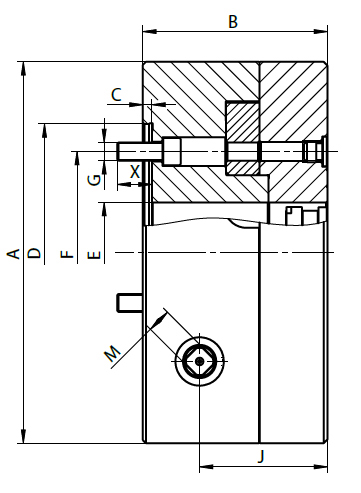

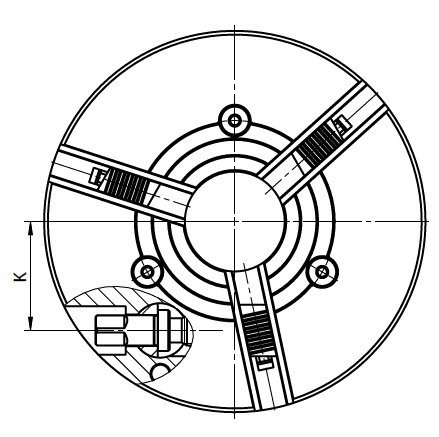

Technical Data
| A | B | C | D | E | F | G | J | K | M | S | X | kg |
| 130 | 67 | 4 | 90 | 30 | 70,6 | 3xM10 | 51,5 | 35,5 | 9 | 5,2 | 13 | 5,6 |
| 165 | 84 | 5 | 115 | 40 | 82,6 | 3xM10 | 65,0 | 45,5 | 11 | 5,2 | 14 | 11,8 |
| 205 | 97 | 5 | 140 | 51 | 104,8 | 3xM10 | 73,5 | 56,5 | 14 | 5,6 | 17 | 20,0 |
| 252 | 112 | 6 | 170 | 66 | 133,4 | 3xM12 | 84,5 | 72,0 | 16 | 6,2 | 18 | 36,0 |
| 315 | 127 | 6 | 220 | 90 | 171,4 | 3xM16 | 95,5 | 88,0 | 18 | 9,1 | 23 | 60,0 |
| 400 | 144 | 6 | 300 | 110 | 235,0 | 6xM20 | 112,5 | 110,0 | 18 | 12,0 | 30 | 107,0 |
| 500 | 144 | 6 | 300 | 190 | 235,0 | 6xM20 | 112,5 | 170,0 | 18 | 12,0 | 33 | 163,0 |
| Inkl. 1 Satz harter Umkehrbacken und 1 Schlüssel / Incl. 1 set of solid reversible jaws and 1 wrench |
||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
