Taper arbor DIN 238, MT 2 / B 10
Regular price:
€2.66*
€3.17 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
41-2/B10
Customs tariff number
8466 1020
European Article Number
4260073570718
Weight
0,2 kg
Stock:
20
Related links:
Request Item
Product information "Taper arbor DIN 238, MT 2 / B 10"

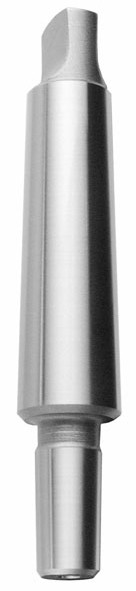

Taper arbor with morse taper shank, DIN 238
- completely hardened and ground
- MT 2
- Taper B 10
| MT: | 2 |
|---|---|
| Taper: | B 10 |
| Type: | Taper arbors |
Technical Data
| MK / MT |
Kegel / Taper |
L mm |
ca. g |
| 1 | B 10 | 86 | 55 |
| 1 | B 12 | 90 | 60 |
| 1 | B 16 | 97 | 90 |
| 1 | B 18 | 105 | 110 |
| 2 | B 10 | 101 | 130 |
| 2 | B 12 | 105 | 135 |
| 2 | B 16 | 112 | 160 |
| 2 | B 18 | 120 | 180 |
| 2 | B 22 | 128 | 245 |
| 3 | B 12 | 124 | 280 |
| 3 | B 16 | 131 | 310 |
| 3 | B 18 | 139 | 320 |
| 3 | B 22 | 147 | 390 |
| 3 | B 24 | 157 | 440 |
| 4 | B 16 | 156 | 625 |
| 4 | B 18 | 164 | 660 |
| 4 | B 22 | 172 | 715 |
| 4 | B 24 | 182 | 770 |
| 5 | B 16 | 188 | 1600 |
| 5 | B 18 | 196 | 1600 |
| 5 | B 22 | 204 | 1650 |
| 5 | B 24 | 214 | 1700 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
