Heavy duty tailstock centre Bison type 8811-7
Regular price:
€1,160.25*
€1,380.70 incl. Vat.
Delivery time upon request
Product number:
800006840
Customs tariff number
84661020
European Article Number
5905555237152
Weight
23,95 kg
Stock:
0
Related links:
Request Item
Product information "Heavy duty tailstock centre Bison type 8811-7"
Heavy duty tailstock centre
- Bison type 8811 MT 7
- standard version
- DIN 228

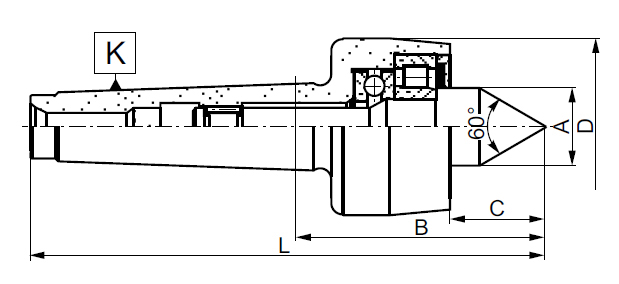

Technical Data
| K MK / K MT |
Gewicht max. / Max. weight |
U min. / RPM |
Rundlaufabweichung / Max. concentr. error |
A | B | C | D | L |
| 1 | 100 | 5000 | 0,008 | 15,0 | 49,5 | 17,0 | 38 | 103,0 |
| 2 | 180 | 5000 | 0,008 | 18,0 | 56,5 | 21,5 | 40 | 120,5 |
| 3 | 450 | 4000 | 0,008 | 25,0 | 75,0 | 27,5 | 56 | 156,0 |
| 4 | 1000 | 3000 | 0,008 | 32,0 | 85,0 | 33,5 | 64 | 187,0 |
| 5 | 1900 | 2500 | 0,010 | 40,0 | 108,0 | 44,0 | 85 | 237,0 |
| 6 | 3700 | 2000 | 0,010 | 62,4 | 151,5 | 64,0 | 130 | 333,5 |
| 7 | 9500 | 1000 | 0,020 | 75,0 | 196,5 | 73,5 | 150 | 447,0 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
