Heavy duty tailstock centre Bison type 8814-6
Regular price:
€426.00*
€506.94 incl. Vat.
Delivery time upon request
Product number:
800006850
Customs tariff number
84661020
European Article Number
5905555237510
Weight
11,88 kg
Stock:
0
Related links:
Request Item
Product information "Heavy duty tailstock centre Bison type 8814-6"

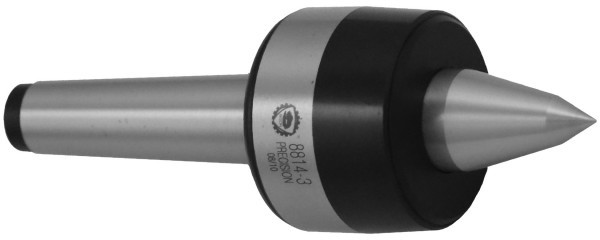

Heavy duty tailstock centre
- with extended point
- Bison type 8814 MT 6
- standard version
- DIN 228

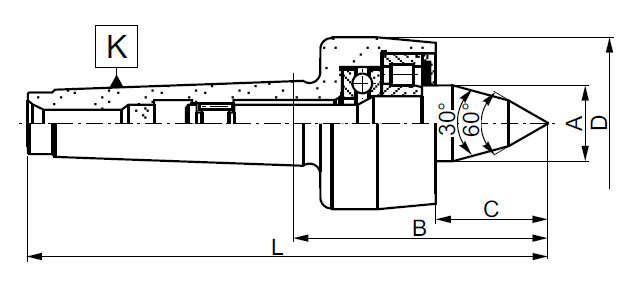

Technical Data
| K MK / K MT |
Gewicht max. / Max. weight |
U min. / RPM |
Rundlaufabweichung / Max. concentr. error |
A | B | C | D | L |
| 2 | 230 | 5000 | 0,015 | 18,0 | 64,5 | 29,5 | 40 | 128,5 |
| 3 | 380 | 4000 | 0,015 | 25,0 | 88,0 | 40,5 | 56 | 169,0 |
| 4 | 850 | 3000 | 0,015 | 32,0 | 103,0 | 51,5 | 64 | 205,0 |
| 5 | 1600 | 2500 | 0,020 | 40,0 | 130,0 | 66,0 | 85 | 259,0 |
| 6 | 3150 | 2000 | 0,020 | 62,4 | 178,0 | 92,0 | 130 | 360,5 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||
