Heavy duty tailstock centre Bison type 8816-1
Product number:
800002562
Customs tariff number
84661031
European Article Number
5905555237862
Weight
0,39 kg
Stock:
0
Related links:
Request Item
Product information "Heavy duty tailstock centre Bison type 8816-1"
Heavy duty tailstock centre
- with draw off nut and carbide tip
- Bison type 8816 MT 1
- standard version
- DIN 228

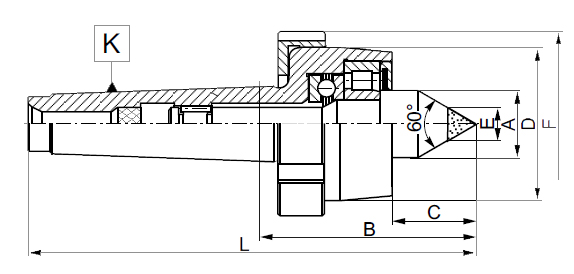

Technical Data
| K MK / K MT |
Gewicht max. / Max. weight |
U min. / RPM |
Rundlaufabweichung / Max. concentr. error |
A | B | C | D | F | E | L |
| 1 | 60 | 5000 | 0,008 | 15,0 | 49,5 | 17,0 | 38 | 50 | 7 | 103,0 |
| 2 | 120 | 5000 | 0,008 | 18,0 | 56,5 | 21,5 | 40 | 52 | 7 | 120,5 |
| 3 | 300 | 4000 | 0,008 | 25,0 | 75,0 | 27,5 | 56 | 68 | 11 | 156,0 |
| 4 | 500 | 3000 | 0,008 | 32,0 | 85,0 | 33,5 | 64 | 76 | 14 | 187,0 |
| 5 | 1250 | 2500 | 0,010 | 40,0 | 108,0 | 44,0 | 85 | 100 | 18 | 237,0 |
| 6 | 2000 | 2000 | 0,010 | 62,4 | 151,5 | 64,0 | 130 | 150 | 18 | 333,5 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
