Revolving tailstock centre, 100 KOP type 141
Regular price:
€242.35*
€288.40 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-141KOP
Customs tariff number
8466 2091
European Article Number
4260073571487
Weight
1,95 kg
Stock:
2
Related links:
Request Item
Product information "Revolving tailstock centre, 100 KOP type 141"
Precision revolving tailstock centre, series 100 KOP
with extended tip 30°/ 60°
- type 141 KOP
- MT 4
- universal centre with 3 groove ball bearings
- housing hardened and ground
- centre tip from chromium-alloyed tool steel
- high concentricity
- easy and smooth running
- maintenance-free permanent lubrication

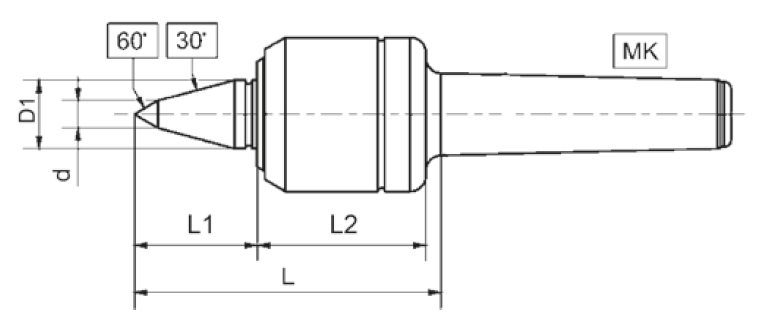

Technical Data
| Typ / Type |
MK / MT |
D mm |
D1 mm |
L mm |
L1 mm |
L2 mm |
d mm |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
| 123 KOP | 2 | 45 | 20 | 94 | 36 | 49 | 8 | 5000 | 100 | 0,005 |
| 131 KOP | 3 | 45 | 20 | 94 | 36 | 49 | 8 | 5000 | 150 | 0,005 |
| 133 KOP | 3 | 60 | 24 | 110 | 46 | 60 | 10 | 4000 | 300 | 0,005 |
| 141 KOP | 4 | 60 | 24 | 117 | 46 | 60 | 10 | 4000 | 400 | 0,005 |
| 143 KOP | 4 | 76 | 32 | 139 | 55 | 73 | 12 | 3200 | 650 | 0,008 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
