Revolving tailstock centre, series 100 type 131
€163.22*
€194.23 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-131
Customs tariff number
8466 2091
European Article Number
4260073571418
Weight
0,9 kg
Stock:
1
Related links:
Request Item
Product information "Revolving tailstock centre, series 100 type 131"
Precision revolving tailstock centre, series 100
- type 131
- MT 3
- universal centre with 3 groove ball bearings
- housing hardened and ground
- centre tip from chromium-alloyed tool steel
- high concentricity
- easy and smooth running
- maintenance-free permanent lubrication

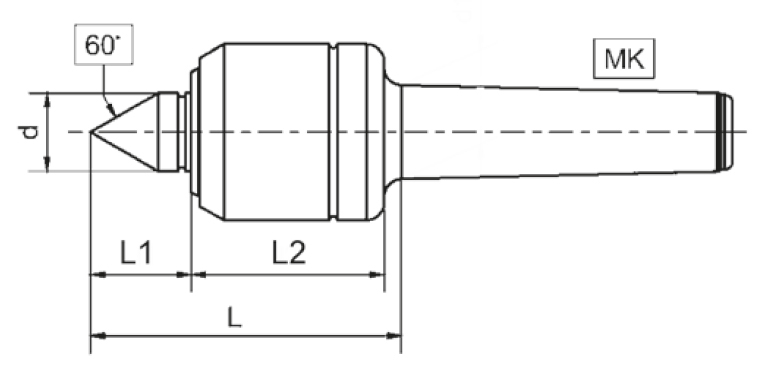

Technical Data
| Typ / Type |
MK / MT |
D mm |
d mm |
L mm |
L1 mm |
L2 mm |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
| 111 | 1 | 28 | 12 | 57,5 | 17 | 34 | 6500 | 25 | 0,005 |
| 113 | 1 | 35 | 13 | 63,5 | 18 | 39 | 5500 | 50 | 0,005 |
| 121 | 2 | 35 | 13 | 66 | 19 | 39 | 5500 | 80 | 0,005 |
| 123 | 2 | 45 | 20 | 84 | 26 | 49 | 5000 | 100 | 0,005 |
| 131 | 3 | 45 | 20 | 84 | 26 | 49 | 5000 | 150 | 0,005 |
| 133 | 3 | 60 | 24 | 103 | 34 | 60 | 4000 | 300 | 0,005 |
| 141 | 4 | 60 | 24 | 105 | 34 | 60 | 4000 | 400 | 0,005 |
| 143 | 4 | 76 | 32 | 126 | 42 | 73 | 3200 | 650 | 0,008 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
