Revolving tailstock centre, 800 KOP type 833
Regular price:
€341.06*
€405.86 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-833KOP
Customs tariff number
8466 2091
European Article Number
4049794005460
Weight
1,4 kg
Stock:
2
Related links:
Request Item
Product information "Revolving tailstock centre, 800 KOP type 833"
Precision revolving tailstock centre, series 800 KOP
with extended tip 30°/ 60°
- type 833 KOP
- MT 3
- centre tip from chromium-alloyed tool steel
with high wear resistance
- housing completely hardened and ground
- with strong axial bearing and double-row angular
ball bearings
- high concentricity
- maintenance-free permanent lubrication
- optimum sealing to avoid penetration
of coolant and dirt

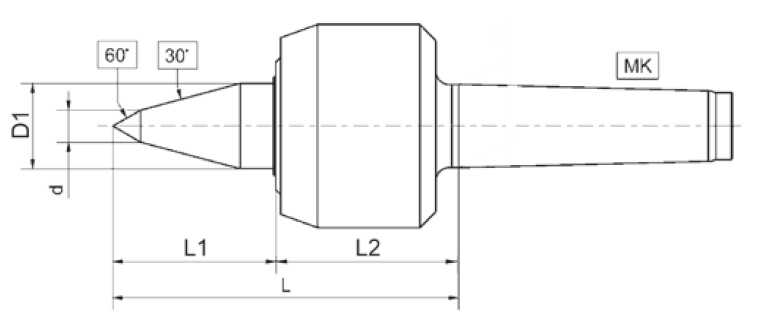

Technical Data
| Typ / Type |
MK / MT |
D mm |
D1 mm |
L mm |
L1 mm |
L2 mm |
d mm |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
| 823 KOP | 2 | 45 | 20 | 87 | 37 | 43 | 8 | 5000 | 100 | 0,005 |
| 831 KOP | 3 | 45 | 20 | 88 | 37 | 43 | 8 | 5000 | 150 | 0,005 |
| 833 KOP | 3 | 60 | 24 | 106 | 47 | 52 | 10 | 4300 | 300 | 0,005 |
| 841 KOP | 4 | 60 | 24 | 107 | 47 | 52 | 10 | 4300 | 400 | 0,005 |
| 843 KOP | 4 | 76 | 32 | 130 | 61 | 60 | 12 | 3200 | 600 | 0,005 |
| 851 KOP | 5 | 78 | 32 | 132 | 61 | 60 | 12 | 3200 | 1200 | 0,005 |
| 853 KOP | 5 | 96 | 42 | 157 | 71 | 74 | 16 | 2600 | 1400 | 0,007 |
| 863 KOP | 6 | 110 | 52 | 178 | 86 | 82 | 20 | 2000 | 2500 | 0,01 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
