Revolving tailstock centre, series 800 type 863
Regular price:
€957.89*
€1,139.89 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-863
Customs tariff number
8466 2091
European Article Number
4049794005439
Weight
11 kg
Stock:
2
Related links:
Request Item
Product information "Revolving tailstock centre, series 800 type 863"
Precision revolving tailstock centre, series 800
- type 863
- MT 6
- centre tip from chromium-alloyed tool steel
with high wear resistance
- housing completely hardened and ground
- with strong axial bearing and double-row angular
ball bearings
- high concentricity
- maintenance-free permanent lubrication
- optimum sealing to avoid penetration
of coolant and dirt

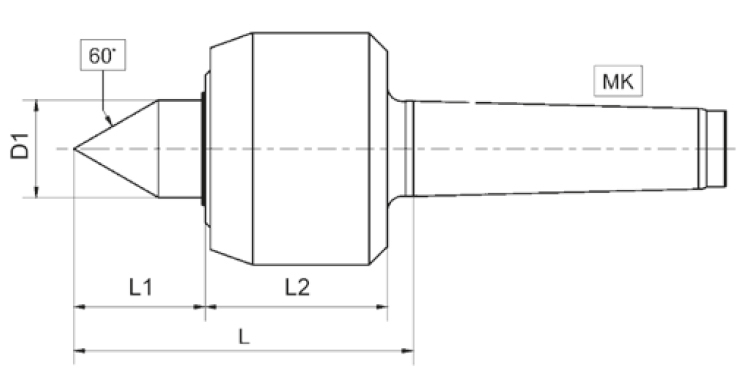

Technical Data
| Typ / Type |
MK / MT |
D mm |
D1 mm |
L mm |
L1 mm |
L2 mm |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
| 823 | 2 | 45 | 20 | 76 | 26 | 43 | 5000 | 150 | 0,005 |
| 831 | 3 | 45 | 20 | 77 | 26 | 43 | 5000 | 200 | 0,005 |
| 833 | 3 | 60 | 24 | 95 | 36 | 52 | 4300 | 400 | 0,005 |
| 841 | 4 | 60 | 24 | 97 | 36 | 52 | 4300 | 600 | 0,005 |
| 843 | 4 | 76 | 32 | 112 | 43 | 60 | 3200 | 750 | 0,005 |
| 851 | 5 | 78 | 32 | 118 | 47 | 60 | 3200 | 1800 | 0,005 |
| 853 | 5 | 96 | 42 | 134 | 49 | 74 | 2600 | 2000 | 0,007 |
| 863 | 6 | 110 | 52 | 155 | 62 | 82 | 2000 | 4500 | 0,01 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
