Revolving tube centre, series 400 type 432
Regular price:
€424.87*
€505.60 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
03-432
Customs tariff number
8466 2091
European Article Number
4049794006047
Weight
4 kg
Stock:
1
Related links:
Request Item
Product information "Revolving tube centre, series 400 type 432"
Precision revolving tube centre, series 400
- type 432
- MT 3
- for machining of tubes and other hollow objects
- completely hardened and fine-ground
- time-tested and sturdy design
- maintenance-free permanent lubrication
- sealed
- also suitable for grinding operations

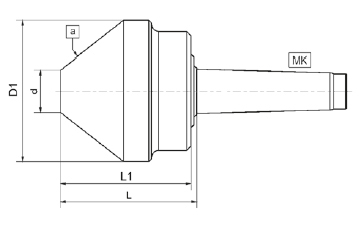

Technical Data
| Typ / Type |
MK / MT |
D1 mm |
D mm |
L mm |
L1 mm |
Winkel / Agle |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
Rundlaufgenauigkeit / Run-out max. mm |
kg |
| 421 | 2 | 60 | 20 | 73 | 66 | 60° | 4000 | 200 | 0,005 | 1 |
| 431 | 3 | 80 | 30 | 86 | 78 | 60° | 3500 | 450 | 0,005 | 2 |
| 432 | 3 | 100 | 30 | 100 | 92 | 75° | 3000 | 400 | 0,005 | 4 |
| 441 | 4 | 100 | 30 | 101 | 92 | 75° | 3000 | 650 | 0,005 | 4 |
| 442 | 4 | 125 | 50 | 91 | 82 | 75° | 3000 | 650 | 0,007 | 5 |
| 451 | 5 | 125 | 50 | 92 | 82 | 75° | 3000 | 1800 | 0,007 | 6 |
| 452 | 5 | 150 | 50 | 112 | 102 | 75° | 2800 | 1900 | 0,007 | 9 |
| 461 | 6 | 150 | 50 | 112 | 102 | 75° | 2800 | 2800 | 0,01 | 12 |
| 453 | 5 | 200 | 50 | 136 | 126 | 75° | 1800 | 2000 | 0,01 | 15 |
| 462 | 6 | 200 | 50 | 136 | 126 | 75° | 1800 | 2800 | 0,01 | 18 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
