Revolving tailstock centre, BASIC MLK-KOP, MT 6
Regular price:
€274.25*
€326.36 incl. Vat.
Delivery time upon request
Product number:
13-MLK-06KOP
Customs tariff number
8466 2091
European Article Number
4049794059111
Weight
10,5 kg
Stock:
0
Related links:
Request Item
Product information "Revolving tailstock centre, BASIC MLK-KOP, MT 6"

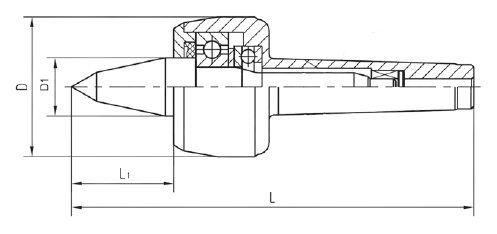

Revolving tailstock centre, BASIC type MLK-KOP
- MT 6
- with extended tip 30° / 60°
Technical Data
| MK / MT |
D mm |
L mm |
L1 mm |
D1 mm |
Winkel / Angle |
Drehzahl / Speed max. |
Werkstück / Work piece max. kg |
| 2 | 45 | 139 | 34 | 20 | 30° / 60° | 7000 | 140 |
| 3 | 60 | 176,5 | 47 | 25 | 30° / 60° | 5000 | 400 |
| 4 | 70 | 217 | 53 | 32 | 30° / 60° | 3800 | 500 |
| 5 | 90 | 273 | 65 | 40 | 30° / 60° | 3000 | 1200 |
| 6 | 105 | 354,5 | 78 | 50 | 30° /b60° | 2600 | 2500 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
