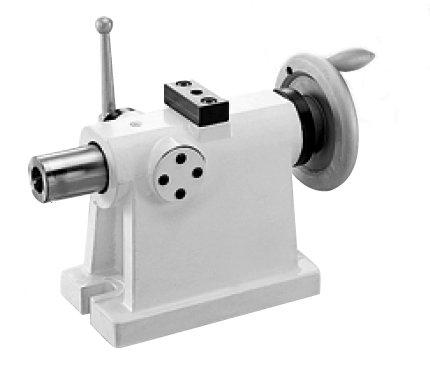

Tailstock type RSF-135
Regular price:
€583.20*
€694.01 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-RSF-135
Customs tariff number
8466 3000
European Article Number
4049794060735
Weight
20 kg
Stock:
3
Related links:
Request Item
Product information "Tailstock type RSF-135"
Tailstock RSF-135 for fixing fixtures and rotary tables
- high precision type
- wth quill MT 3
- without height adjustment

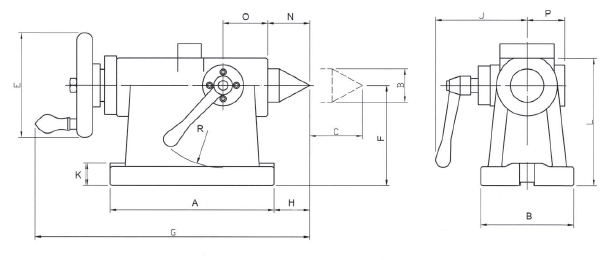

Technical Data
| F mm |
MK / MT |
C mm |
D mm |
E mm |
A mm |
B mm |
G mm |
H mm |
K mm |
| 135 | 3 | 55 | Ø 14 | 125 | 215 | 120 | 332 | 25 | 25 |
| 160 | 3 | 55 | Ø 18 | 140 | 230 | 130 | 356 | 30 | 30 |
| 210 | 3 | 55 | Ø 18 | 140 | 230 | 146 | 356 | 30 | 30 |
| J mm |
L mm |
M mm |
N mm |
O mm |
P mm |
Q mm |
R mm |
Nut (g) / Slot (g) mm |
kg |
| 109 | 164 | 19 | 40 | 69 | 44 | 70 | 80 | 18 | 21 |
| 129 | 193 | 19 | 45 | 70 | 52 | 80 | 95 | 18 | 23 |
| 129 | 243 | 23 | 45 | 70 | 52 | 80 | 95 | 18 | 29,4 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
