VDI 40 toolholder slotted, type E2S-40-10
€99.50*
€118.40 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
47-E2S-40-10
Customs tariff number
8466 1031
European Article Number
4049794010518
Weight
1,75 kg
Stock:
6
Related links:
Request Item
Product information "VDI 40 toolholder slotted, type E2S-40-10"
Type E2S, VDI 40 toolholder slotted, reduced vibration
- VDI-Tool holder
- type E2S-40-10
| Type: | E2S |
|---|---|
| VDI: | 40 |
| Ø : | 10 mm |

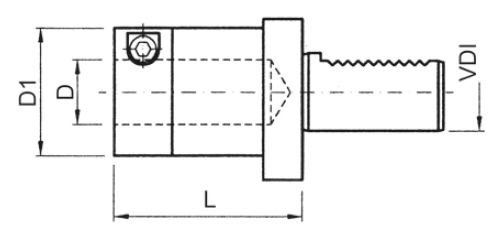

Technical Data
| VDI | D mm |
D1 mm |
L mm |
| 30 | 6 | 30 | 57 |
| 30 | 8 | 30 | 57 |
| 30 | 10 | 36 | 57 |
| 30 | 12 | 36 | 57 |
| 30 | 16 | 40 | 57 |
| 30 | 20 | 44 | 57 |
| 30 | 25 | 49 | 72 |
| 30 | 32 | 56 | 72 |
| 40 | 10 | 36 | 62 |
| 40 | 12 | 36 | 62 |
| 40 | 16 | 40 | 62 |
| 40 | 20 | 44 | 62 |
| 40 | 25 | 49 | 77 |
| 40 | 32 | 56 | 77 |
| 40 | 40 | 64 | 77 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
