VDI 40 Boring bar holder with 2 bores, E8-40-32
€205.34*
€244.35 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
47-E8-40-32
Customs tariff number
8466 1031
European Article Number
4049794064146
Weight
3,75 kg
Stock:
6
Related links:
Request Item
Product information "VDI 40 Boring bar holder with 2 bores, E8-40-32"
Type E8, VDI 40 Boring bar holder with 2 bores
- VDI-Tool holder
- VDI 40, D: 32 mm
- type E8-40-32
| Type: | E8 Boring bar holders with 2 bores |
|---|---|
| VDI: | 40 |
| Ø : | 32 mm |

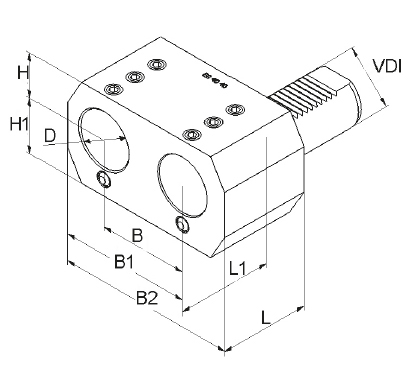

Technical Data
| VDI | D mm |
H mm |
H1 mm |
L mm |
L1 mm |
B mm |
B1 mm |
B2 mm |
| 20 | 16 | 25 | 25 | 45 | 42 | 32 | 51 | 76 |
| 20 | 20 | 25 | 25 | 45 | 42 | 32 | 51 | 76 |
| 30 | 25 | 28 | 32 | 56 | 52 | 45 | 65 | 95 |
| 40 | 32 | 32,5 | 40 | 66 | 60 | 50 | 75 | 115 |
| 50 | 32 | 32,5 | 47,5 | 60 | 60 | 50 | 75 | 115 |
| 50 | 50 | 35 | 49 | 90 | 80 | 68 | 103 | 152 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
