Collet chuck SK40 ER25, A 70 mm, DIN 69871

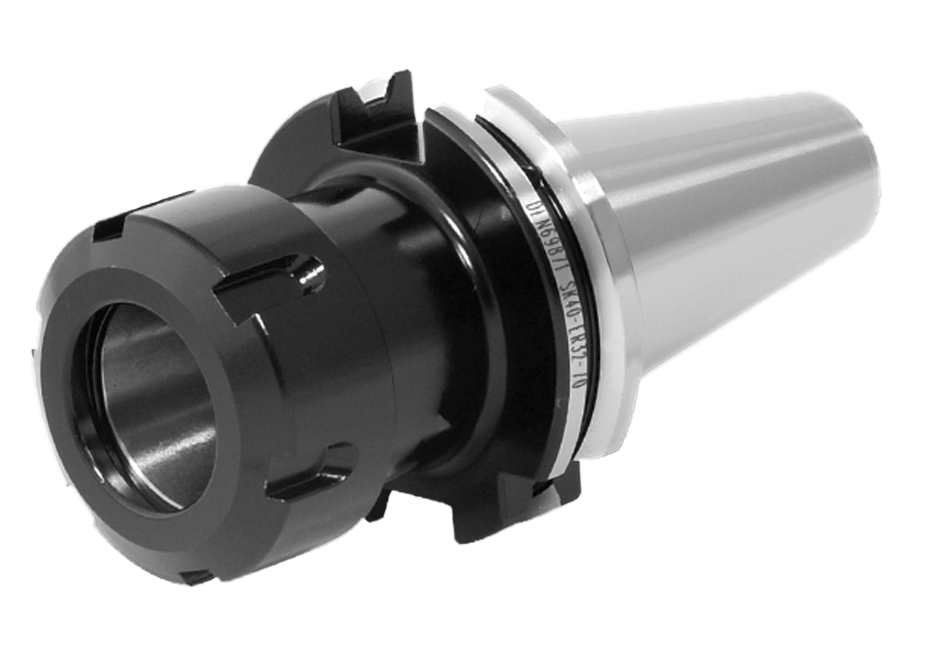

Preview: Collet chuck SK40 ER25, A 70 mm, DIN 69871 Preview: Drawing Collet chuck SK40 ER25, A 70 mm, DIN 69871
Collet chuck SK40 ER25, A 70 mm, DIN 69871

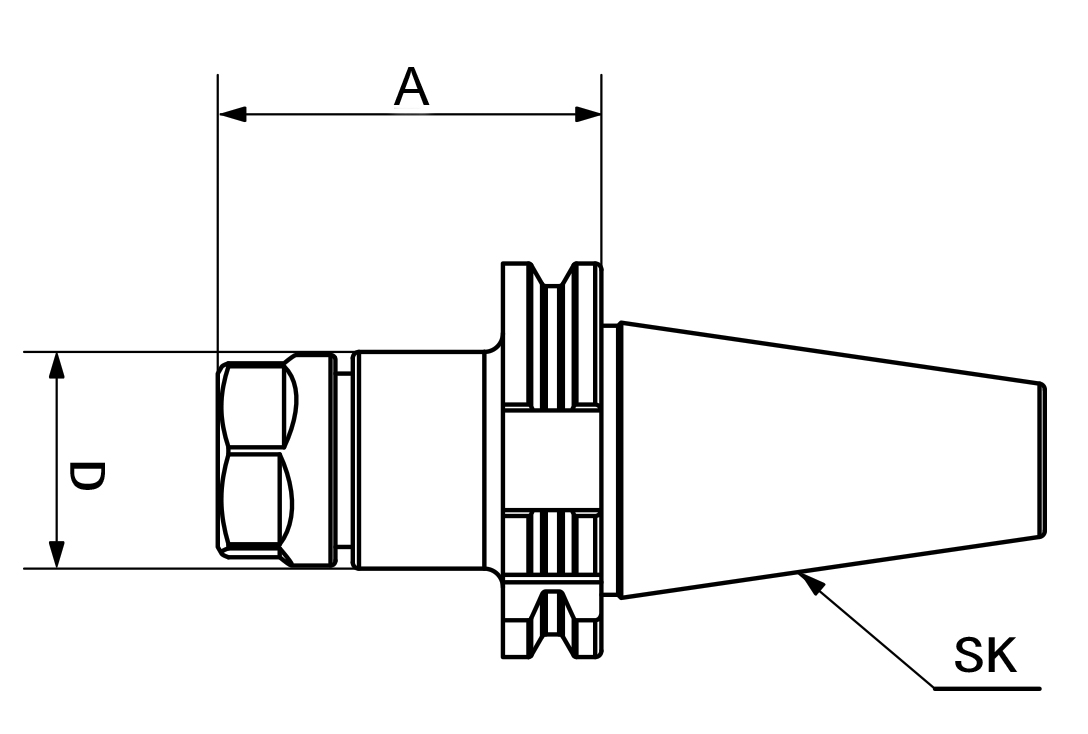

Drawing Collet chuck SK40 ER25, A 70 mm, DIN 69871

€40.32 *
€47.98 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7617-40-25
  • Customs tariff number: 8466 1038
  • European article number: 4049794018514
  • Weight: 1,1 kg
  • In stock: 11
Description Technical data Evaluations 0
Description
Collet chuck DIN 69871 ER25 SK40 - SK 40 - ER 25 - A: 70 mm   more
Close menu
Product information "Collet chuck SK40 ER25, A 70 mm, DIN 69871"

Collet chuck DIN 69871 ER25 SK40

- SK 40
- ER 25
- A: 70 mm



Type: Collet chucks
DIN: 69871
Size: SK 40
for collets: ER25
Related links to "Collet chuck SK40 ER25, A 70 mm, DIN 69871"
Technical data
Größe / Size Spannzange / Collet A mm D mm SK 40 ER 16 63 28 SK 40... more
Zurück
Größe /
Size		 Spannzange /
Collet		 A
mm		 D
mm
SK 40 ER 16 63 28
SK 40 ER 16 100 28
SK 40 ER 16 160 28
SK 40 ER 25 70 42
SK 40 ER 25 100 42
SK 40 ER 25 160 42
SK 40 ER 32 70 50
SK 40 ER 32 100 50
SK 40 ER 32 160 50
SK 40 ER 40 80 63
SK 40 ER 40 100 63
SK 40 ER 40 160 63

Gewuchtet G = 6,3 15.000 U/min.
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
