Collet chuck ER16 cylindrical shank, D:20 / L:130

Preview: Collet chuck ER16 cylindrical shank, D:20 / L:130 Preview: Drawing Collet chuck ER16 cylindrical shank, D:20 / L:130
Collet chuck ER16 cylindrical shank, D:20 / L:130

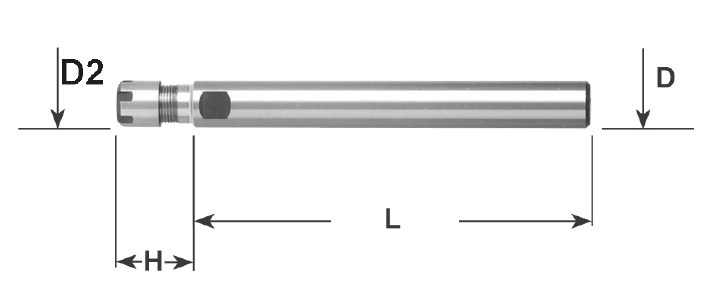

Drawing Collet chuck ER16 cylindrical shank, D:20 / L:130

€52.85 *
€62.89 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7812-20-16M-130
  • Customs tariff number: 8466 1038
  • European article number: 4049794020036
  • Weight: 0,3 kg
  • In stock: 32
Description Technical data Evaluations 0
Description
Collet chuck ER16 with cylindrical shank and mini nut - D: 20 mm - ER 16 - L: 130 mm more
Close menu
Product information "Collet chuck ER16 cylindrical shank, D:20 / L:130"

Collet chuck ER16 with cylindrical shank and mini nut

- D: 20 mm
- ER 16
- L: 130 mm

Type: Collet chucks
DIN: centre mount
Size: cylindrical 20 mm
for collets: ER16
Related links to "Collet chuck ER16 cylindrical shank, D:20 / L:130"
Technical data
D mm Spannzange / Collet L mm D2 mm H mm 12 ER 8 100 12 23 12... more
Zurück
D
mm		 Spannzange /
Collet		 L
mm		 D2
mm		 H
mm
12 ER 8 100 12 23
12 ER 11 100 16 26
12 ER 11 140 16 28
12 ER 16 80 22 35
16 ER 11 100 16 19
16 ER 11 130 16 19
16 ER 11 160 16 18
16 ER 16 100 22 35
16 ER 16 130 22 35
16 ER 16 160 22 33
20 ER 11 100 16 19
20 ER 11 130 16 19
20 ER 16 100 22 31
20 ER 16 130 22 31
20 ER 16 165 22 22
20 ER 20 130 28 45
20 ER 20 160 28 45
20 ER 20 200 28 45
25 ER 11 160 16 28
25 ER 16 100 22 25
25 ER 16 130 22 25
25 ER 16 163 22 22
25 ER 20 130 28 40
25 ER 20 160 28 40

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
