Collet chuck ER 32 cylindrical shank, D:32 / L:130

Preview: Collet chuck ER 32 cylindrical shank, D:32 / L:130 Preview: Drawing Collet chuck ER 32 cylindrical shank, D:32 / L:130
Collet chuck ER 32 cylindrical shank, D:32 / L:130

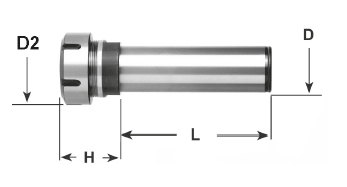

Drawing Collet chuck ER 32 cylindrical shank, D:32 / L:130

€72.00 *
€85.68 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7812-32-32-130
  • Customs tariff number: 8466 1038
  • European article number: 4049794020241
  • Weight: 0,95 kg
  • In stock: 6
Description Technical data Evaluations 0
Description
Collet chuck ER 32 with cylindrical shank and standard nut - D: 32 mm - ER 32 - L: 130... more
Close menu
Product information "Collet chuck ER 32 cylindrical shank, D:32 / L:130"

Collet chuck ER 32 with cylindrical shank and standard nut

- D: 32 mm
- ER 32
- L: 130 mm

Type: Collet chucks
DIN: centre mount
Size: cylindrical 32 mm
for collets: ER32
Related links to "Collet chuck ER 32 cylindrical shank, D:32 / L:130"
Technical data
D mm Spannzange / Collet L mm D2 mm H mm 32 ER 25 100 42 27 32... more
Zurück
D
mm		 Spannzange /
Collet		 L
mm		 D2
mm		 H
mm
32 ER 25 100 42 27
32 ER 25 160 42 48
32 ER 32 50 50 50
32 ER 32 100 50 50
32 ER 32 130 50 42
32 ER 32 160 50 48
32 ER 40 70 63 35
32 ER 40 130 63 60
40 ER 32 80 50 45
40 ER 32 135 50 50
40 ER 32 160 50 50
40 ER 40 130 63 50
40 ER 40 160 63 50
50 ER 40 120 63 35
50 ER 40 160 63 35

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
