Collet chuck ER 25 cylindrical shank, D:20 / L:100

Preview: Collet chuck ER 25 cylindrical shank, D:20 / L:100 Preview: Drawing Collet chuck ER 25 cylindrical shank, D:20 / L:100
Collet chuck ER 25 cylindrical shank, D:20 / L:100

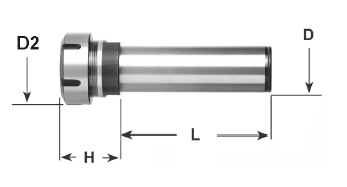

Drawing Collet chuck ER 25 cylindrical shank, D:20 / L:100

€62.86 *
€74.80 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7812-20-25-100
  • Customs tariff number: 8466 1038
  • European article number: 4049794020098
  • Weight: 0,45 kg
  • In stock: 23
Description Technical data Evaluations 0
Description
Collet chuck ER 25 with cylindrical shank and standard nut - D: 20 mm - ER 25 - L: 100... more
Close menu
Product information "Collet chuck ER 25 cylindrical shank, D:20 / L:100"

Collet chuck ER 25 with cylindrical shank and standard nut

- D: 20 mm
- ER 25
- L: 100 mm

Type: Collet chucks
DIN: centre mount
Size: cylindrical 20 mm
for collets: ER25
Related links to "Collet chuck ER 25 cylindrical shank, D:20 / L:100"
Technical data
D mm Spannzange / Collet L mm D2 mm H mm 20 ER 25 50... more
Zurück
D
mm		 Spannzange /
Collet		 L
mm		 D2
mm		 H
mm
20 ER 25 50 42 42
20 ER 25 100 42 42
20 ER 25 130 42 40
20 ER 25 160 42 46
20 ER 32 100 50 47
20 ER 32 130 50 53
20 ER 32 160 50 53
25 ER 20 160 28 45
25 ER 25 50 42 48
25 ER 25 100 42 45
25 ER 25 160 42 45
25 ER 32 50 50 50
25 ER 32 100 50 50
25 ER 32 130 50 53
25 ER 32 160 50 48
25 ER 40 60 63 55

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
