Collet chuck ER 16 MT 2

Preview: Collet chuck ER 16 MT 2 Preview: Drawing Collet chuck ER 16 MT 2
Collet chuck ER 16 MT 2

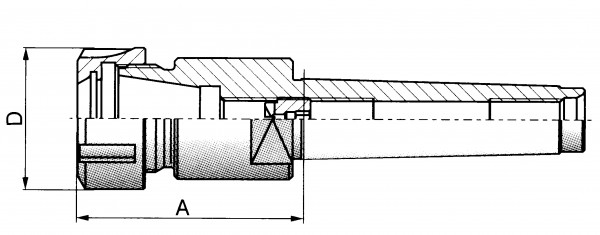

Drawing Collet chuck ER 16 MT 2

€60.98 *
€72.57 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7711-2-16
  • Customs tariff number: 8466 1038
  • European article number: 4049794016565
  • Weight: 0,15 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Collet chuck ER with morse taper, MT 2 - ER 16 - clamping range 2-10 mm more
Close menu
Product information "Collet chuck ER 16 MT 2"

Collet chuck ER with morse taper, MT 2 - ER 16

- clamping range 2-10 mm

Type: Collet chucks
Size: MT 2
for collets: ER16
Related links to "Collet chuck ER 16 MT 2"
Technical data
Größe / Size Spannzange / Collet A mm D mm Spannbereich / Clamping... more
Zurück
Größe /
Size		 Spannzange /
Collet		 A
mm		 D
mm		 Spannbereich /
Clamping range
MK 2 ER 16 50 32  2 - 10
MK 2 ER 20 50 35  2 - 13
MK 2 ER 25 60 42  2 - 16
MK 2 ER 32 60 50  2 - 20
MK 2 ER 40 80 63  2 - 26
MK 3 ER 16 50 32  2 - 10
MK 3 ER 20 50 35  2 - 13
MK 3 ER 25 56 42  2 - 16
MK 3 ER 32 60 50  2 - 20
MK 3 ER 40 80 63  2 - 26
MK 4 ER 25 60 42  2 - 16
MK 4 ER 32 60 50  2 - 20
MK 4 ER 40 80 63  2 - 26
MK 5 ER 32 80 50  2 - 20
MK 5 ER 40 80 63  2 - 26

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
