Collet 185E square 40,0 mm

Preview: Collet 185E square 40,0 mm Preview: Drawing Collet 185E square 40,0 mm
Collet 185E square 40,0 mm

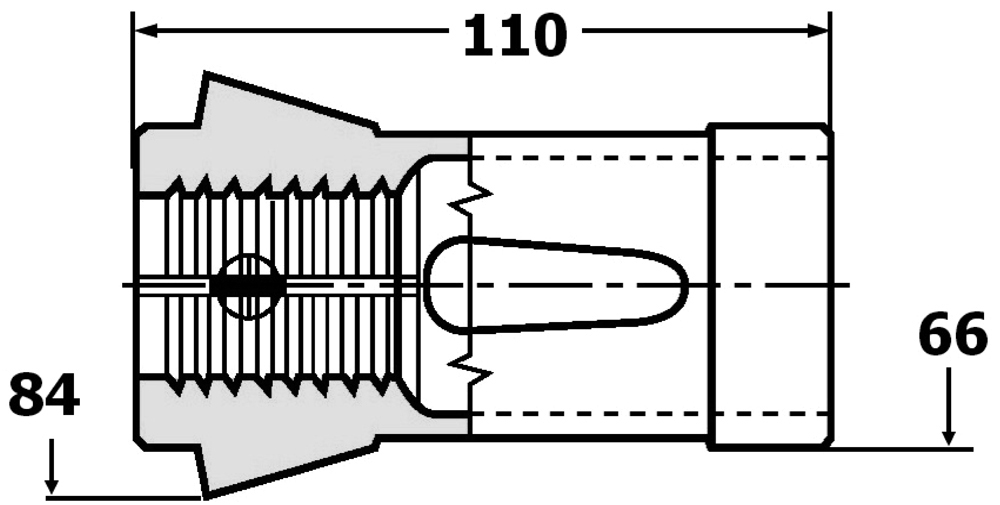

Drawing Collet 185E square 40,0 mm

€85.75 *
€102.04 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 06-185E-40,0-4kant
  • Customs tariff number: 8466 1020
  • European article number: 4049794656570
  • Weight: 1,25 kg
  • In stock: 4
Description Technical data Evaluations 0
Description
Collet square, DIN 6343, Type 185E - 1 mm stepped ❑ 40 mm more
Close menu
Product information "Collet 185E square 40,0 mm"

Collet square, DIN 6343, Type 185E

- 1 mm stepped

❑ 40 mm

Type: 185 E
Ø : 40 mm
Type: square
Stepping: 1 mm
Related links to "Collet 185E square 40,0 mm"
Technical data
Größe / Size Form / Form  Ø 4 - 60 rund / round ❑ 10 - 40... more
Zurück
Größe /
Size		 Form /
Form
 Ø 4 - 60 rund / round
❑ 10 - 40 vierkant / square
⎔  6 - 50 sechskant / hexagonal
Notfallspannzange / Emergency collet 185 E

Bis einschließlich Ø 8 mm - glatte Bohrung, ab Ø 8,5 mm mit Querrillen /
Up to Ø 8 mm - smooth bore, from Ø 8,5 mm - radial grooved

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
