Tapping collet ER 25 Ø 2,8 mm, length compensation

€78.41 *
€93.31 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 09-6025-2,8
  • 8466 1020
  • 4049794664230
  • 0,08 kg
  • 2
Tapping collet with length compensation - collet ER 25 - Ø 2,8 mm more
Product information "Tapping collet ER 25 Ø 2,8 mm, length compensation"

Tapping collet with length compensation

- collet ER 25

- Ø 2,8 mm

Type: ER 25
Ø : 2,8 mm
Type: with length compensation
Related links to "Tapping collet ER 25 Ø 2,8 mm, length compensation"

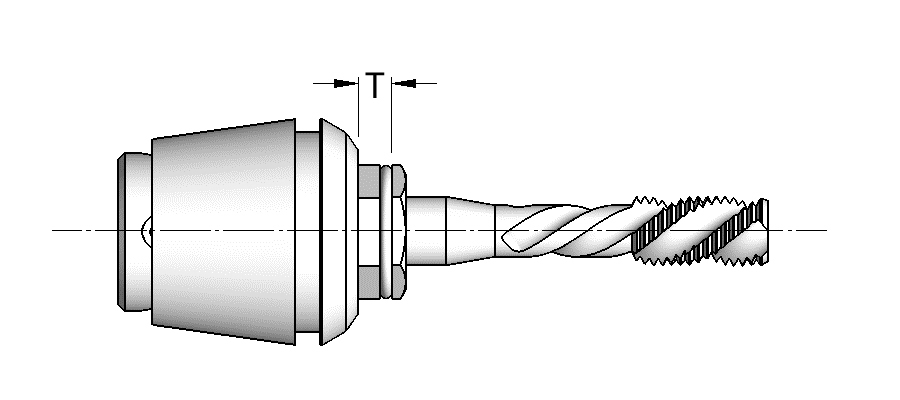

Spannzange / Collet Spann-Ø / Clamping-Ø mm D mm L mm T mm ER 16 Ø 2,5 - Ø... more
Spannzange /
Collet
Spann-Ø /
Clamping-Ø mm
D
mm
L
mm
T
mm
ER 16 Ø 2,5 - Ø 6,0 17 27 7
ER 20 Ø 2,8 - Ø 7,0 21 31 7
ER 25 Ø 2,5 - Ø 10,0 26 34 8
ER 32 Ø 4,5 - Ø 12,0 33 43 10
ER 40 Ø 6,0 - Ø 16,0 41 54 13

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved


Spannzange /
Collet
Standard-Ø /
Standard- mm
ER 16 2,5 / 2,8 / 3,5 / 4,5 / 6,0
ER 20 2,8 / 3,5 / 4,5 / 6,0 / 7,0
ER 25 2,5 / 2,8 / 3,5 / 4,5 / 6,0 / 7,0 / 8,0 / 9,0 / 10,0
ER 32 4,5 / 6,0 / 7,0 / 8,0 / 9,0 / 10,0 / 11,0 / 12,0
ER 40 6,0 / 7,0 / 8,0 / 9,0 / 10,0 / 11,0 / 12,0 / 14,0 / 16,0

Andere Abmessungen lieferbar auf Anfrage /
Further dimensions available upon request
