Collet chuck HSK-A 63, ER 16-100

Preview: Collet chuck HSK-A 63, ER 16-100 Preview: Drawing Collet chuck HSK-A 63, ER 16-100
Collet chuck HSK-A 63, ER 16-100

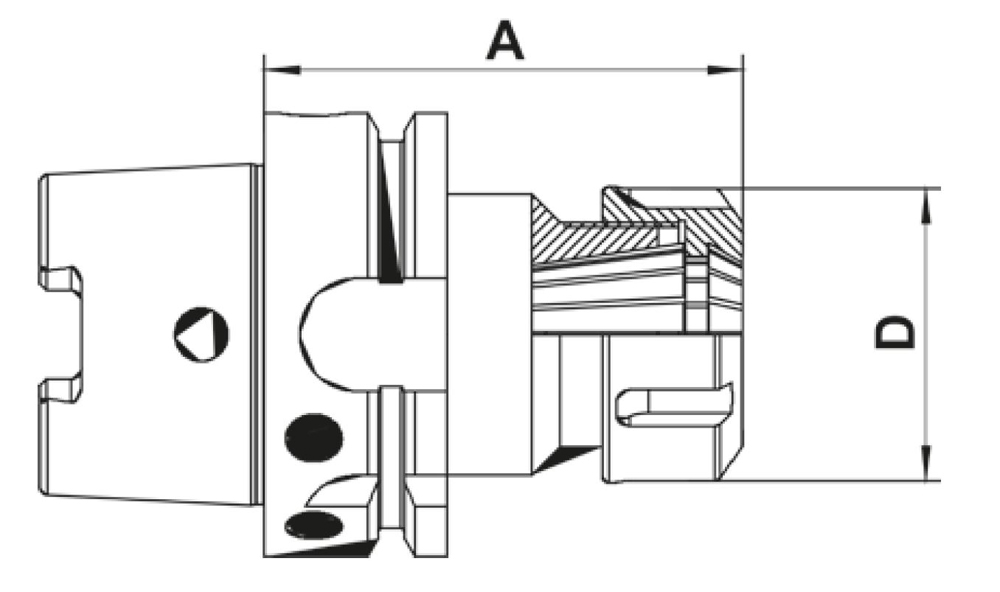

Drawing Collet chuck HSK-A 63, ER 16-100

€69.12 *
€82.25 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 17-SF63A-ER16-100
  • Customs tariff number: 8466 1038
  • European article number: 4049794033715
  • Weight: 1 kg
  • In stock: 15
Description Technical data Evaluations 0
Description
Collet chuck ER, DIN 69893 HSK-A - HSK 63A - balanced G = 6,3 25.000 U/min. - for collet:... more
Close menu
Product information "Collet chuck HSK-A 63, ER 16-100"

Collet chuck ER, DIN 69893 HSK-A

- HSK 63A
- balanced G = 6,3 25.000 U/min.
- for collet: ER16 (clamping range 1-10 mm)
- A: 100 mm

Type: Collet chucks
Size: HSK-A 63
for collets: ER16
Related links to "Collet chuck HSK-A 63, ER 16-100"
Technical data
Größe / Size Für Spannzange / For collet D mm A mm HSK-A 63... more
Zurück
Größe /
Size		 Für Spannzange /
For collet		 D
mm		 A
mm
HSK-A 63 ER16 (1-10) 28 100
HSK-A 63 ER16 (1-10) 28 160
HSK-A 63 ER 25 (2-16) 42 100
HSK-A 63 ER 25 (2-16) 42 160
HSK-A 63 ER 32 (2-20) 50 100
HSK-A 63 ER 32 (2-20) 50 160
HSK-A 63 ER40 (3-26) 63 120
HSK-A 63 ER40 (3-26) 63 160

Gewuchtet G 6,3 25.000 U/min. /
Balanced G 6,3 25.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
