Shell mill adapter HSK-A 63, Ø 16 mm / A 100 mm

Preview: Shell mill adapter HSK-A 63, Ø 16 mm / A 100 mm Preview: Drawing Shell mill adapter HSK-A 63, Ø 16 mm / A 100 mm
Shell mill adapter HSK-A 63, Ø 16 mm / A 100 mm

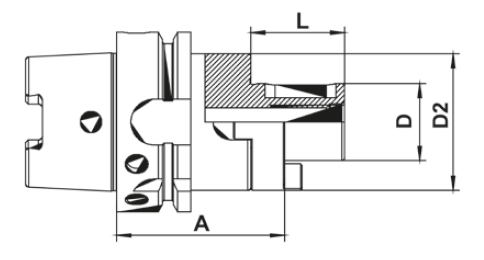

Drawing Shell mill adapter HSK-A 63, Ø 16 mm / A 100 mm

€77.47 *
€92.19 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 17-KD63A-16-100
  • Customs tariff number: 8466 1038
  • European article number: 4049794034293
  • Weight: 1 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Combination shell mill adapter, DIN 6358 HSK-A - HSK 63A - balanced G = 6,3 15.000 U/min.... more
Close menu
Product information "Shell mill adapter HSK-A 63, Ø 16 mm / A 100 mm"

Combination shell mill adapter, DIN 6358 HSK-A

- HSK 63A
- balanced G = 6,3 15.000 U/min.
- D: 16 mm
- A: 100 mm



Type: Combination shell mill adaptors
Size: HSK-A 63
Ø : 16 mm
Related links to "Shell mill adapter HSK-A 63, Ø 16 mm / A 100 mm"
Technical data
Größe / Size D mm D2 mm A mm L mm HSK-A 63 16 32 60... more
Zurück
Größe /
Size		 D
mm		 D2
mm		 A
mm		 L
mm
HSK-A 63 16 32 60 27
HSK-A 63 16 32 100 27
HSK-A 63 22 40 60 31
HSK-A 63 22 40 100 31
HSK-A 63 27 48 60 33
HSK-A 63 27 48 100 33
HSK-A 63 32 58 60 38
HSK-A 63 32 58 100 38
HSK-A 63 40 70 70 41

Gewuchtet G = 6,3 15.000 U/min. /
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
