Hydraulic chuck HSK-A 63, Ø 10 x 80 mm

€191.52 *

€227.91 incl. VAT

Delivery time upon request

Hydraulic chuck DIN 69893, HSK-A - balanced G = 2,5 20.000 U/min. - HSK-A 63 - d: 10 mm -... more

Product information "Hydraulic chuck HSK-A 63, Ø 10 x 80 mm"

Hydraulic chuck DIN 69893, HSK-A

- balanced G = 2,5 20.000 U/min.
- HSK-A 63
- d: 10 mm
- L: 80 mm
- incl. wrench

Related links to "Hydraulic chuck HSK-A 63, Ø 10 x 80 mm"

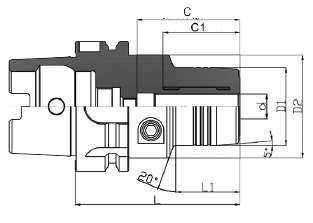

Größe / Size d mm D1 mm D2 mm L mm L1 mm C1 mm C mm... more

Größe / Size	d mm	D1 mm	D2 mm	L mm	L1 mm	C1 mm	C mm
HSK63A	6	32	48	80	32	29	46
HSK63A	8	34	50	80	32	30	46
HSK63A	10	36	52,5	80	32	31	50
HSK63A	12	38	52,5	80	32	32	50
HSK63A	16	42	52,5	90	41	40	60
HSK63A	20	46	52,5	90	41	40	60

Gewuchtet G = 2,5 20.000 U/min. / Balanced G = 2,5 20.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved
