Independent chuck DIN 55027, Ø 315 mm, Taper 11

Preview: Independent chuck DIN 55027, Ø 315 mm, Taper 11 Preview: Drawing Independent chuck DIN 55027, Ø 315 mm, Taper 11
Independent chuck DIN 55027, Ø 315 mm, Taper 11

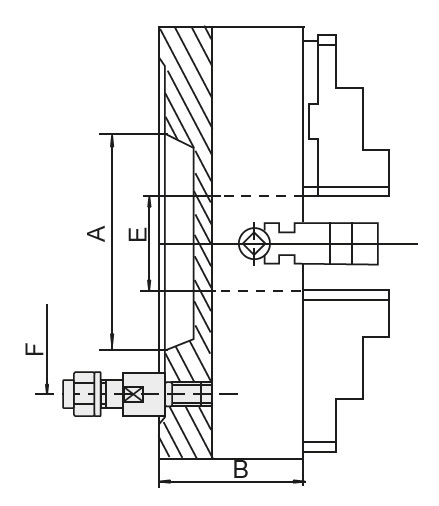

Drawing Independent chuck DIN 55027, Ø 315 mm, Taper 11

€516.60 *
€614.75 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: ZE-4157-311
  • Customs tariff number: 8466 2091
  • European article number: 4049794053591
  • Weight: 39,5 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Independent chuck DIN 55027, Ø 315 mm, Taper 11, one-piece jaws - chuck body made from cast... more
Close menu
Product information "Independent chuck DIN 55027, Ø 315 mm, Taper 11"

Independent chuck DIN 55027, Ø 315 mm, Taper 11, one-piece jaws

- chuck body made from cast iron
- with 4 individually adjustable jaws
- especially suitable for holding irregulary
  shaped work pieces
- inkl. 1 set hardened reversible jaws,
  wrench, fixing screws

Taper: 11
Ø : 315 mm
DIN: 55027
Jaws: one-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Independent chuck DIN 55027, Ø 315 mm, Taper 11"
Technical data
A (Ø) mm KK Taper B mm D mm E mm F mm RPM  MAX min -1... more
Zurück
A (Ø)
mm		KK
Taper		B
mm		D
mm		E
mm		F
mm		RPM MAX
min -1		kg
20047563,55685180010
20057582,656104,8180010
200675106,456133,4180010
25058582,665104,8150027,5
250685106,465133,4150027,5
250885139,765171,4150027,5
31559582,680104,8120039,5
315695106,480133,4120039,5
315895139,780171,4120039,5
3151195196,980235120039,5
4006105106,4100133,480060
4008105139,7100171,480060
40011105196,910023580060
5008120139,7125171,450095,5
50011120196,912523550095,5
6308140139,7125171,4400165
63011140196,9160235400165
63015140285,8160330,2400165
80011145196,9180235300298
80015145285,8180330,2300298

Inkl. je 1 Satz einteiliger Umkehrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set hardened reversible jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
