Jaw turning fixtures for power chucks type 208
€256.26*
Available, delivery time: 1-3 workdays
Product information "Jaw turning fixtures for power chucks type 208"

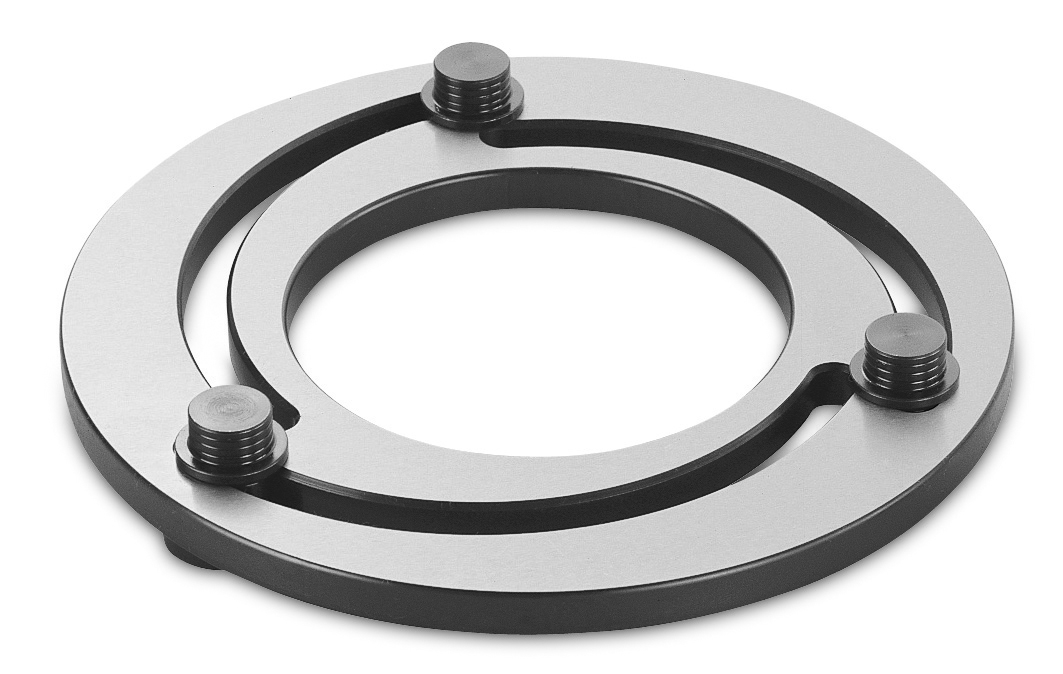

Jaw turning fixtures for power chucks
- for chuck type 208
- easy of handling

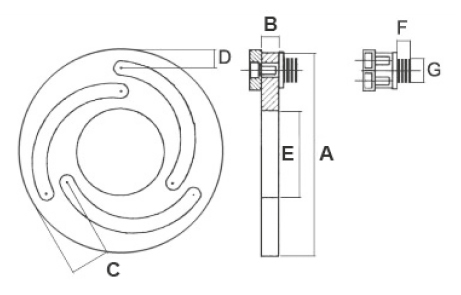

Technical Data
| Für Futter-Typ / For chuck type |
B mm |
A mm |
E mm |
D mm |
C mm |
F mm |
G mm |
kg |
| 205 | 12 | 140 | 60 | 12 | 28 | 9 | 13 | 2 |
| 206 | 12 | 168 | 80 | 12 | 32 | 9 | 16,5 | 2 |
| 208 | 12 | 218 | 115 | 15 | 36 | 9 | 18,5 | 3 |
| 210 | 12 | 258 | 150 | 17 | 40 | 9 | 18,5 | 4 |
| 212 | 15 | 316 | 188 | 21 | 50 | 9 | 22,5 | 6 |
| 215 | 20 | 380 | 230 | 23 | 52 | 16 | 31 | 11 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
