Hard base jaws for six-jaw lathe chucks Ø 200 mm
Product number:
ZE-GB38-200
Customs tariff number
8466 2091
European Article Number
4049794045190
Weight
1,9 kg
Stock:
0
Related links:
Request Item
Product information "Hard base jaws for six-jaw lathe chucks Ø 200 mm"
Hard base jaws for lathe chucks Ø 200 mm
- 6 pieces per set
| Jaws: | Hard base jaws |
|---|---|
| Jaws for lathe chucks type: | 6-jaw lathe chucks |
| Jaws for Ø: | 200 mm |
| Make: | Zentra |

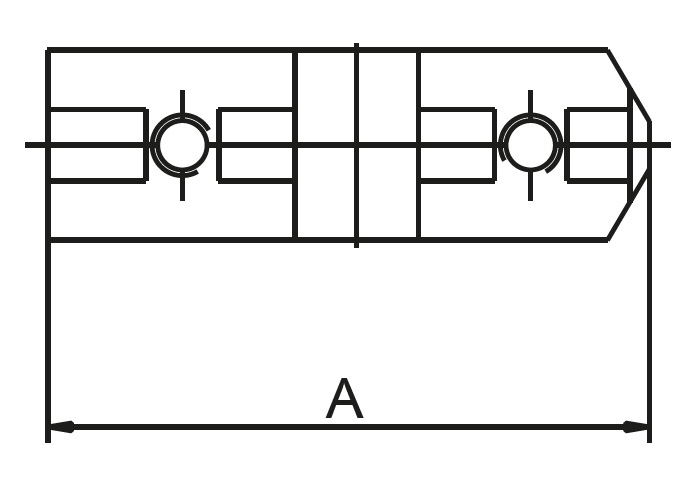

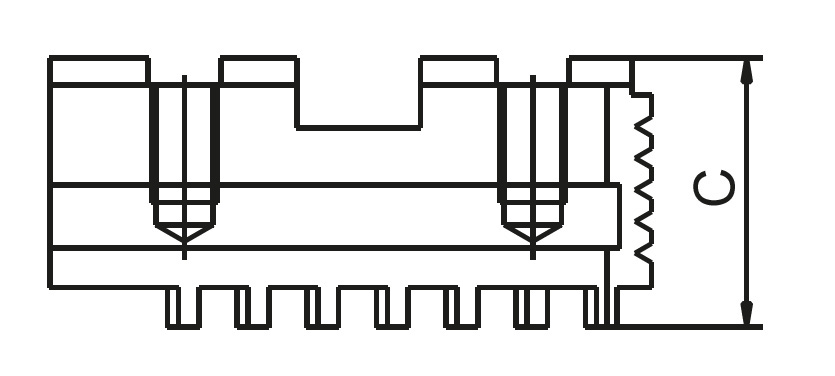

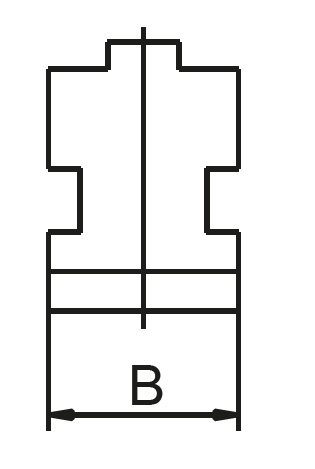

Technical Data
| Für / for Ø mm |
A mm |
B mm |
C mm |
| 125 | 54 | 20 | 28 |
| 160 | 65 | 20 | 29 |
| 200 | 79 | 25 | 33 |
| 250 | 92 | 28 | 36 |
| 315 | 110 | 32 | 40 |
| 400 | 130 | 36 | 49 |
| 500 | 166 | 40 | 54 |
| 630 | 210 | 50 | 54,4 |
| Preis pro Satz / Price per set | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
