Hard top jaws for six-jaw lathe chucks Ø 250 mm
€332.78*
€396.01 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-HAB38-250
Customs tariff number
8466 2091
European Article Number
4049794044896
Weight
3,15 kg
Stock:
1
Related links:
Request Item

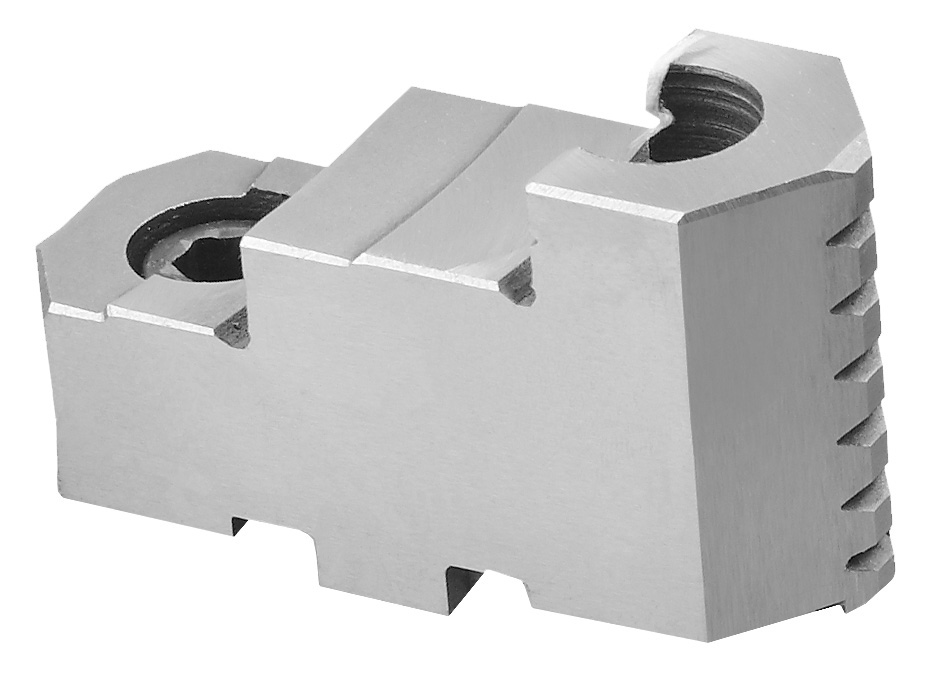

Product information "Hard top jaws for six-jaw lathe chucks Ø 250 mm"
Hard reversible top jaws for lathe chucks Ø 200 mm
- 6 pieces per set
| Jaws: | Hard top jaws |
|---|---|
| Jaws for lathe chucks type: | 6-jaw lathe chucks |
| Jaws for Ø: | 250 mm |
| Make: | Zentra |

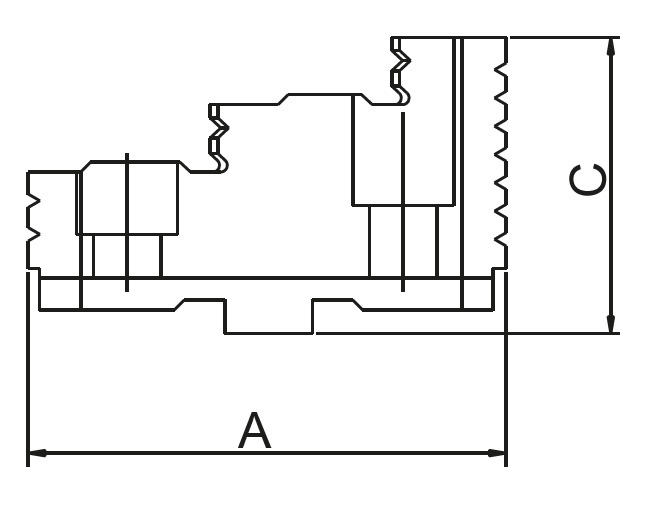

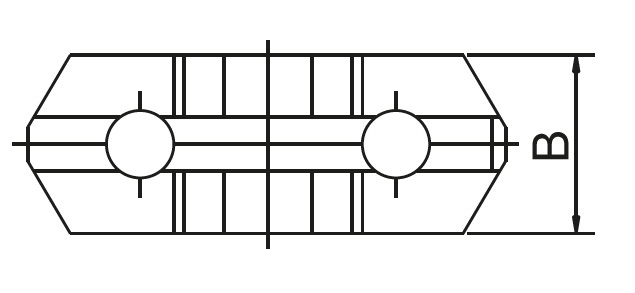

Technical Data
| Für / for Ø mm |
A mm |
B mm |
C mm |
| 125 | 56 | 22 | 38,5 |
| 160 | 67 | 25 | 41,5 |
| 200 | 80 | 27 | 43,5 |
| 250 | 95 | 32,5 | 51,5 |
| 315 | 110 | 37 | 55 |
| 400 | 127 | 42 | 64,5 |
| Preis pro Satz / Price per set | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
