Solid jaws for three-jaw lathe chucks Ø 250 mm
€107.71*
€128.17 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-BB35-250
Customs tariff number
8466 2091
European Article Number
4049794045596
Weight
2,8 kg
Stock:
16
Related links:
Request Item

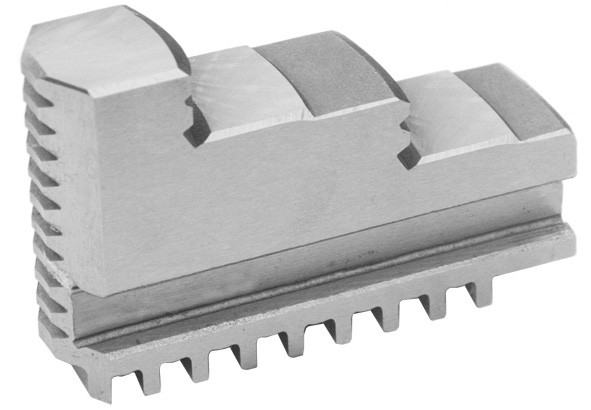

Product information "Solid jaws for three-jaw lathe chucks Ø 250 mm"
Externally stepped solid jaws for lathe chucks
3 pieces per set
| Jaws: | Externally stepped solid jaws |
|---|---|
| Jaws for lathe chucks type: | 3-jaw lathe chucks |
| Jaws for Ø: | 250 mm |
| Make: | Zentra |

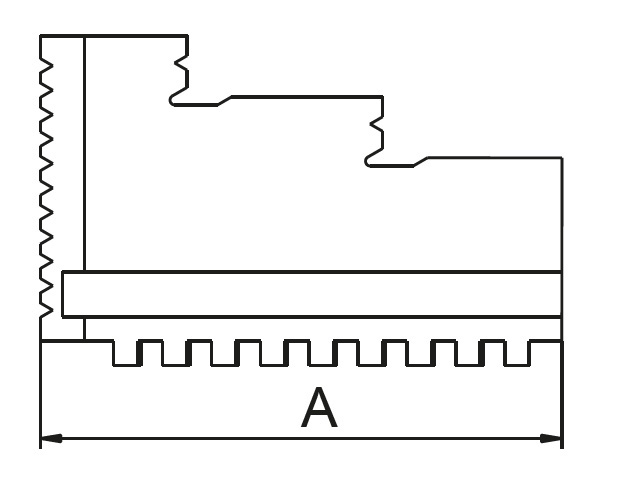

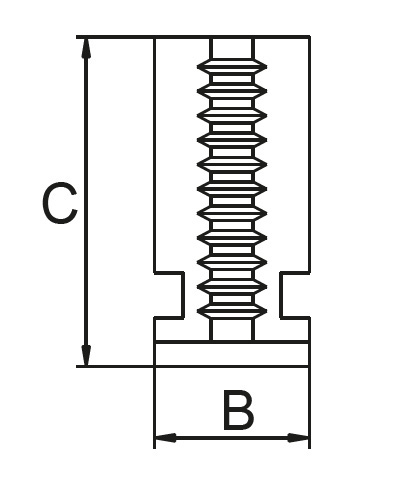

Technical Data
| Für / for Ø mm |
A mm |
B mm |
C mm |
| 80 | 32 | 11 | 28 |
| 100 | 42 | 15 | 32 |
| 125 | 51 | 20 | 40 |
| 160 | 70 | 20 | 53 |
| 200 | 85 | 25 | 54 |
| 250 | 105 | 28 | 63 |
| 315 | 125 | 32 | 73 |
| 400 | 145 | 36 | 92 |
| 500 | 180 | 40 | 100 |
| 630/800 | 225 | 50 | 110 |
| Preis pro Satz / Price per set | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
