Soft top jaws for three-jaw lathe chucks Ø 160 mm
€46.30*
€55.10 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-WAB35-160
Customs tariff number
8466 2091
European Article Number
4049794045312
Weight
1,45 kg
Stock:
31
Related links:
Request Item
Product information "Soft top jaws for three-jaw lathe chucks Ø 160 mm"

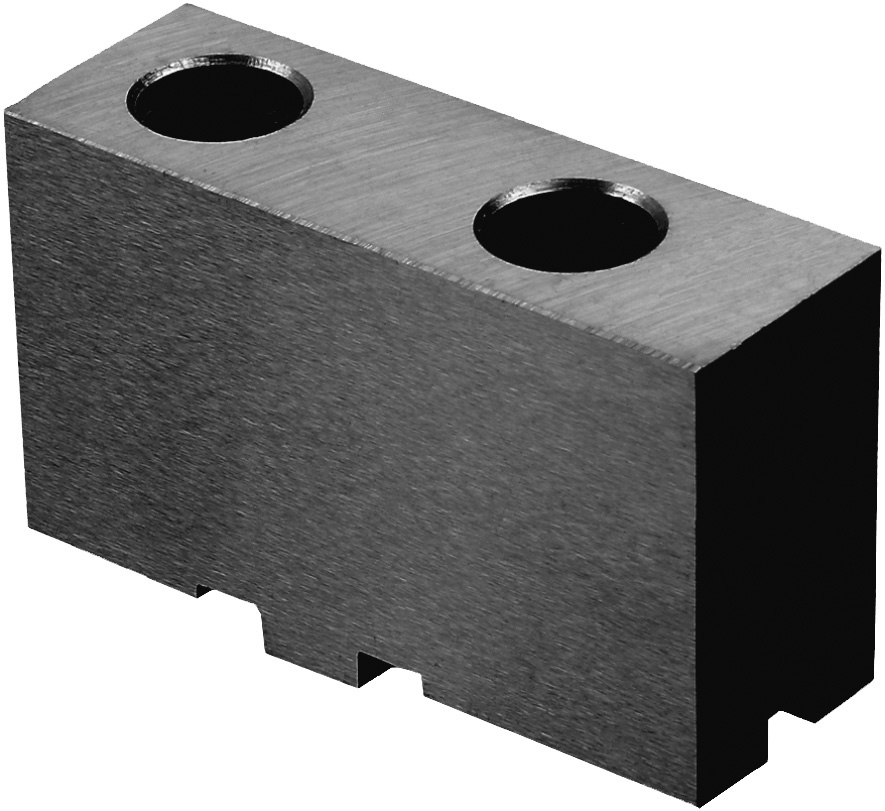

Soft top jaws for three-jaw lathe chucks Ø 160 mm
material C45,
3 pieces per set
| Jaws: | Soft top jaws |
|---|---|
| Jaws for lathe chucks type: | 3-jaw lathe chucks |
| Jaws for Ø: | 160 mm |
| Make: | Zentra |

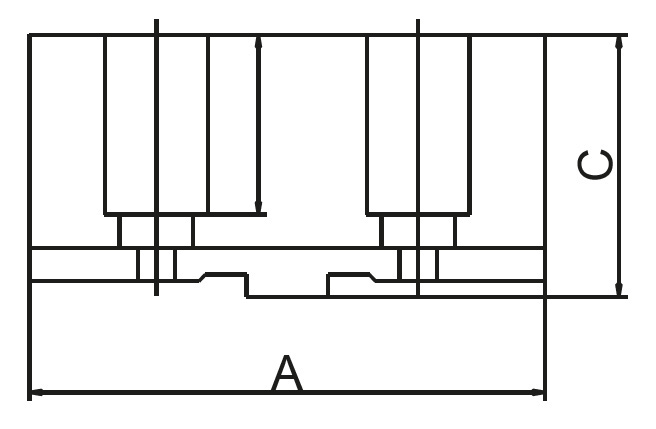

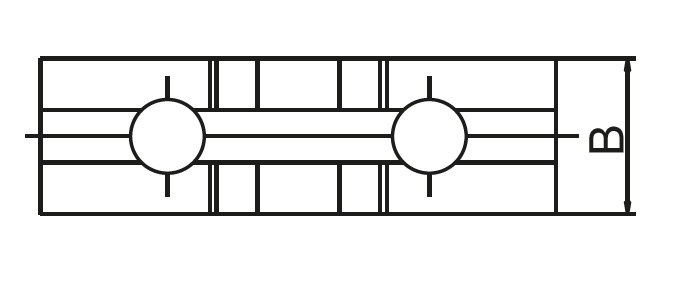

Technical Data
| Für / for Ø mm |
A mm |
B mm |
C mm |
| 125 | 64 | 22 | 38,5 |
| 160 | 78 | 25 | 41,5 |
| 200 | 90 | 27 | 43,5 |
| 250 | 106 | 32 | 51,5 |
| 315 | 120 | 37 | 55 |
| 400 | 140 | 42 | 64,5 |
| 500 | 140 | 42 | 74,5 |
| 630/800 | 160 | 50 | 80 |
| Preis pro Satz / Price per set | |||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
