Three-jaw lathe chuck DIN 55027 Ø 400 mm, Taper 11

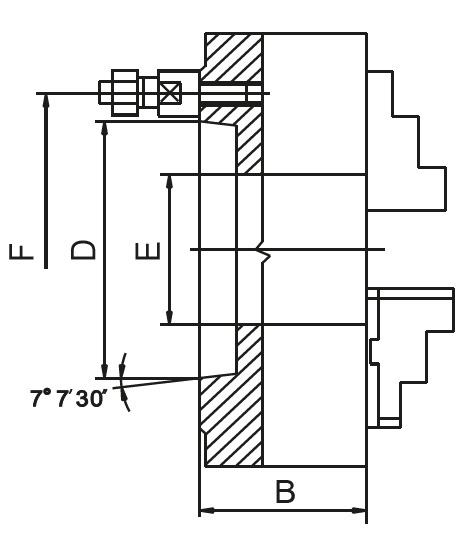

Preview: Three-jaw lathe chuck DIN 55027 Ø 400 mm, Taper 11 Preview: Drawing Three-jaw lathe chuck DIN 55027 Ø 400 mm, Taper 11
Three-jaw lathe chuck DIN 55027 Ø 400 mm, Taper 11
Drawing Three-jaw lathe chuck DIN 55027 Ø 400 mm, Taper 11

€1,803.24 *
€2,145.86 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-8357-411
  • Customs tariff number: 8466 2091
  • European article number: 4049794040126
  • Weight: 112 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Three-jaw lathe chuck DIN 55027 Ø 400 mm - according to DIN 55027, one-piece jaws - suitable... more
Close menu
Product information "Three-jaw lathe chuck DIN 55027 Ø 400 mm, Taper 11"

Three-jaw lathe chuck DIN 55027 Ø 400 mm

- according to DIN 55027, one-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing bolts

Type: 3-jaw lathe chucks
Ø : 400 mm
DIN: 55027
Taper: 11
Jaws: one-piece jaws
Material: Steel
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 55027 Ø 400 mm, Taper 11"
Technical data
Ø mm KK / Taper B mm D mm E mm F mm RPM  MAX min -1 kg 125 3 59,5 54... more
Zurück
Ø
mm		KK /
Taper		B
mm		D
mm		E
mm		F
mm		RPM MAX
min -1		kg
125359,55435,57548005
125459,563,535,58548005
16046863,5428545009
16056882,642104,845009
20047863,55585400019
20057882,655104,8400019
200678106,455133,4400019
250689106,476133,4350032
250889139,776171,4350032
315696,2106,4103133,4280051
315896,2139,7103171,4280051
31511117,7196,9103235280051
4008108139,7136171,42000101
40011108196,91362352000101

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsbolzen /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing bolts

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
