Three-jaw lathe chuck DIN 55029 Ø 400 mm, Taper 11

Preview: 3-jaw lathe chuck DIN 55029 Ø 400 mm, Taper 11 Preview: Drawing 3-jaw lathe chuck DIN 55029 Ø 400 mm, Taper 11
3-jaw lathe chuck DIN 55029 Ø 400 mm, Taper 11

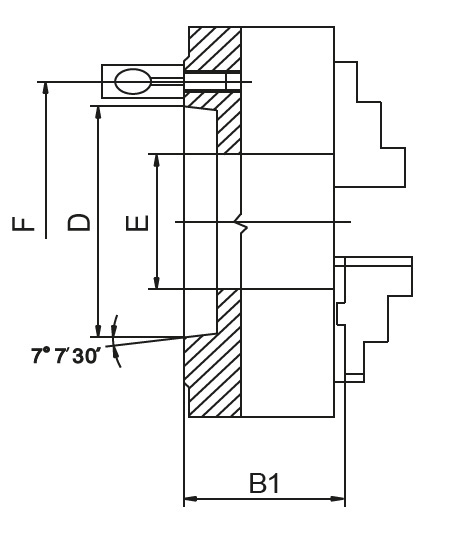

Drawing 3-jaw lathe chuck DIN 55029 Ø 400 mm, Taper 11

€2,133.86 *
€2,539.29 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: ZE-8369-411
  • Customs tariff number: 8466 2091
  • European article number: 4049794040836
  • Weight: 103 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Three-jaw lathe chuck DIN 55029 Ø 400 mm - according to DIN 55029 (Camlock), two-piece jaws... more
Close menu
Product information "Three-jaw lathe chuck DIN 55029 Ø 400 mm, Taper 11"

Three-jaw lathe chuck DIN 55029 Ø 400 mm

- according to DIN 55029 (Camlock), two-piece jaws

- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing bolts

Type: 3-jaw lathe chucks
Ø : 400 mm
DIN: 55029
Taper: 11
Jaws: two-piece jaws
Material: Steel
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 55029 Ø 400 mm, Taper 11"
Technical data
Ø mm KK / Taper B1 mm D mm E mm F mm RPM  MAX min -1 kg 125 3 64,8 54... more
Zurück
Ø
mm		KK /
Taper		B1
mm		D
mm		E
mm		F
mm		RPM MAX
min -1		kg
125364,85435,570,648005
125464,863,535,582,648005
160372,8544270,645009
160472,863,54282,645009
160572,882,642104,845009
200482,863,55582,6400019
200582,882,655104,8400019
200682,8106,455133,4400019
250692,8106,476133,4350032
250892,8139,776171,4350032
3156101,3106,4103133,4280051
3158101,3139,7103171,4280051
31511145196,9103235280051
4008116,8139,7136171,42000101
40011116,8196,91362352000101

Inkl. je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsbolzen /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing bolts

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
