Two-jaw lathe chuck DIN 6350 Ø 400 mm

Preview: Two-jaw lathe chuck DIN 6350 Ø 400 mm Preview: Drawing Two-jaw lathe chuck DIN 6350 Ø 400 mm
Two-jaw lathe chuck DIN 6350 Ø 400 mm

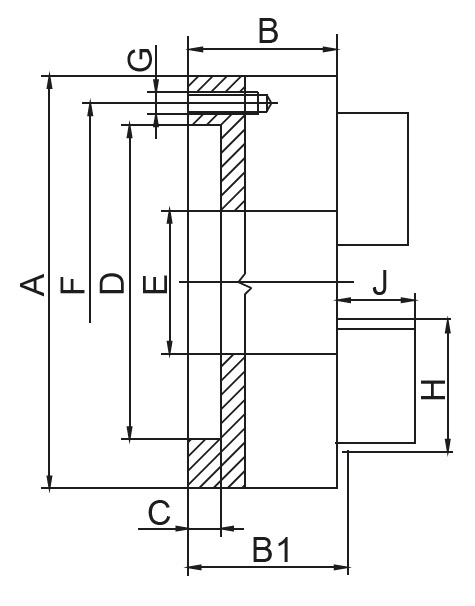

Drawing Two-jaw lathe chuck DIN 6350 Ø 400 mm

€874.51 *
€1,040.67 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-6252-400
  • Customs tariff number: 8466 2091
  • European article number: 4049794038642
  • Weight: 82 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Two-jaw lathe chuck DIN 6350 - centre mount - suitable for all types of lathes and different... more
Close menu
Product information "Two-jaw lathe chuck DIN 6350 Ø 400 mm"

Two-jaw lathe chuck DIN 6350

- centre mount
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- especially suitable for holding multicornered and form turned elements,
  which cannot be clamped by 3- or 4-jaw lathe chucks
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set base jaws and soft reversible top jaws,
  wrench, fixing screws

Type: 2-jaw lathe chucks
Ø : 400 mm
DIN: 6350
Jaws: two-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Two-jaw lathe chuck DIN 6350 Ø 400 mm"
Technical data
A (Ø) mm B mm B1 mm C mm D mm E mm F mm G mm H mm J mm RPM  MAX min -1 kg... more
Zurück
A (Ø)
mm		B
mm		B1
mm		C
mm		D
mm		E
mm		F
mm		G
mm		H
mm		J
mm		RPM MAX
min -1		kg
1606469,34125421406xM106743300010
2007579,34160551766xM108045250017,5
2508588,85200762246xM129553200029
3159499,152601032866xM1611057150050
400105113,853301363626xM1612767100085


Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
