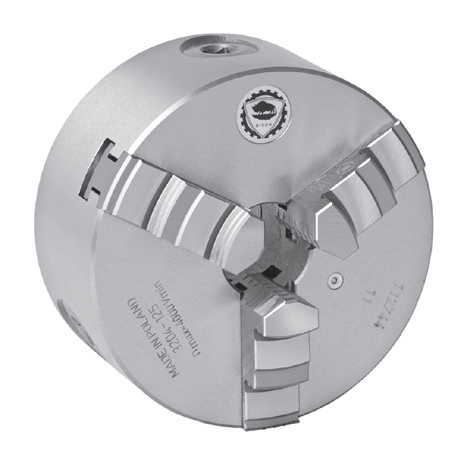

3-jaw scroll chuck Bison type 3204-160

Product information "3-jaw scroll chuck Bison type 3204-160"

3-jaw scroll chuck Bison

- plain back mounting DIN 6350
- type 3204 Ø 160 mm
- ground working surfaces
- material of body: cast iron
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

DIN: 6350
Jaws: one-piece jaws
Make: Bison
Material: Cast iron
Type: 3-jaw lathe chucks
Ø : 160 mm

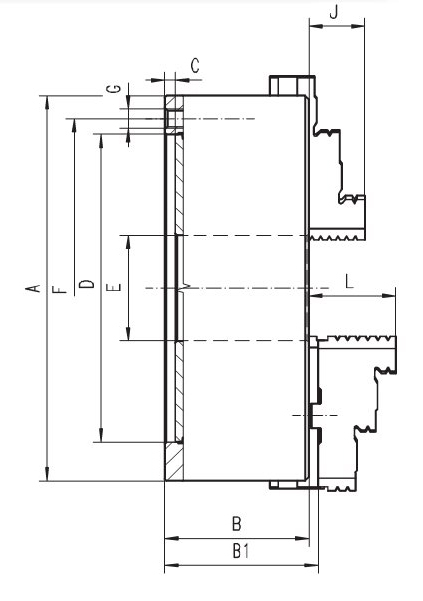

Technical Data

A B B1 C D H7 E F G J L kg
80 44,0 - 3 56 16 67 3xM6 13 - 1,5
100 50,0 - 3 70 20 83 3xM8 16 - 2,8
125 56,0 60,8 4 95 32 108 3xM8 20 40 5,0
160 64,5 69,3 4 125 42 140 6xM10 32 43 10,0
200 75,0 79,8 4 160 55 176 6xM10 29 45 17,5
250 85,0 88,8 5 200 76 224 6xM12 34 53 29,0
315 94,0 99,1 5 260 103 286 6xM16 43 57 50,0
400 105,0 113,8 5 330 136 362 6xM16 55 67 85,0
500 120,0 130,8 5 420 190 458 6xM16 60 79 145,0
630 135,0 146,3 7 545 252 586 6xM16 70 87 250,0

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
